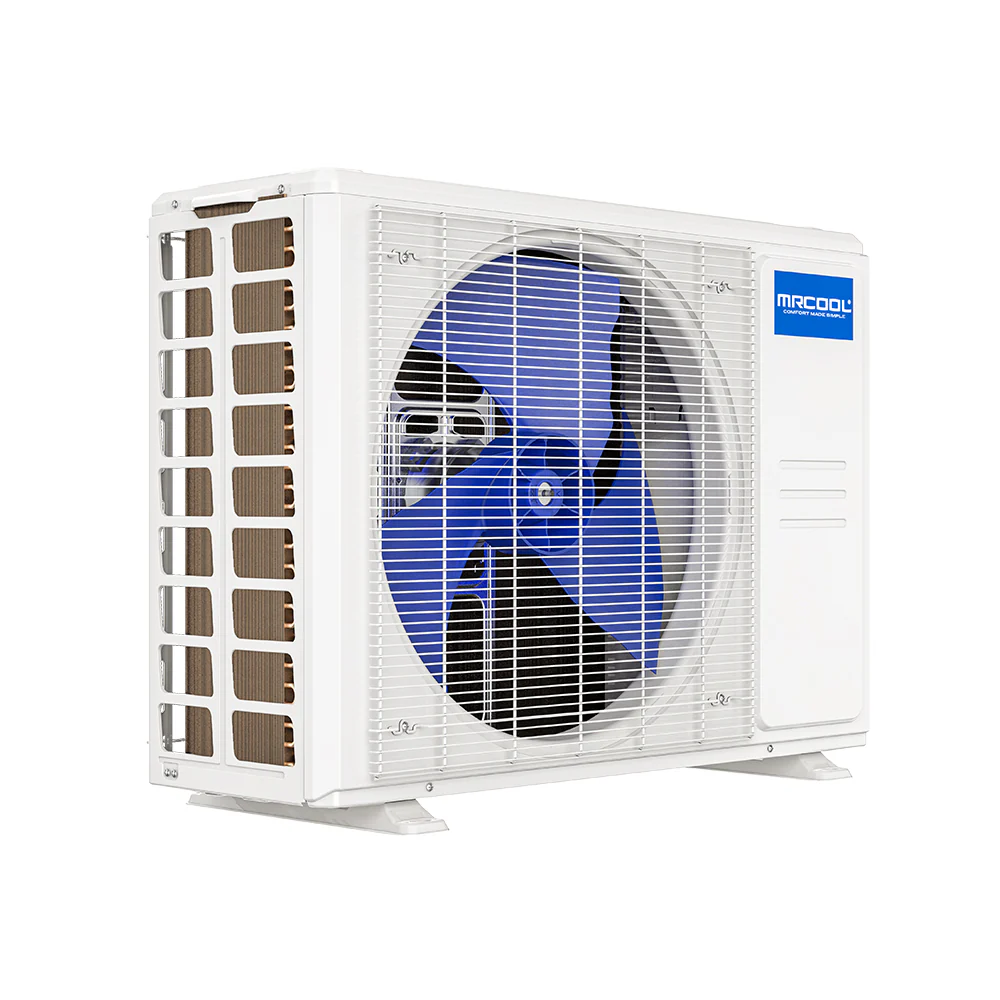

MRCOOL DIYHH-12 Hyper Heat 12K BTU Condenser – 5th Gen, -22°F Heating, R-454B, 230V QuickConnect

MRCOOL® DIYHH-12 Hyper Heat 12K BTU Condenser – 5th Gen DIY QuickConnect® (230V)

New for 2025 – 12K Hyper Heat DIY Condenser with Pre-Charged 25 ft Line Set

The MRCOOL® DIYHH-12-HP-C-230D25-O is a next-generation 5th Gen 12,000 BTU Hyper Heat DIY condenser designed to deliver high-efficiency heating and cooling in spaces up to 500 sq. ft.. Built for true cold-weather performance, this Hyper Heat mini split maintains reliable output down to -22°F and uses inverter technology for quiet, steady comfort instead of loud single-stage cycling.

Powered by environmentally friendly R-454B refrigerant, the DIYHH-12 condenser improves thermal efficiency and lowers greenhouse impact compared to older R-410A systems. Installation is simple thanks to the included 25 ft pre-charged QuickConnect® line set, which arrives sealed, factory-vacuumed, and filled — no gauges, pumps, nitrogen, or HVAC licensing required.

Whether you pair it with a MRCOOL DIY wall-mounted air handler or an OuttaSight® ceiling cassette (230V models), this condenser becomes a full smart mini split system with the MRCOOL SmartHVAC™ app, Amazon Alexa, and Google Assistant voice control.

IMPORTANT: This is a 208/230V condenser. It cannot be used with 115V DIY air handlers.

---

Key Benefits

• 12,000 BTU Hyper Heat condenser for spaces up to 500 sq. ft.
• Reliable heating performance down to -22°F
• 5th Gen inverter technology for smooth, quiet operation
• Uses R-454B low-GWP refrigerant for improved efficiency and reduced environmental impact
• 25 ft pre-charged QuickConnect® line set — factory-vacuumed and sealed
• No vacuum pump, gauges, nitrogen, or EPA license required
• Compatible with DIY wall mount and OuttaSight® ceiling cassette indoor units (230V)
• Smart control via MRCOOL SmartHVAC™ app, Alexa, and Google Assistant (with compatible indoor unit)
• Gold Fin® corrosion-resistant coating for inland and coastal installs

---

What's Included

• DIYHH-12-HP-C-230D25-O — 12K Hyper Heat Outdoor Condenser
• 25 ft pre-charged R-454B QuickConnect® line set
• Installation hardware & documentation

No vacuuming or refrigerant tools required.

Compatible Indoor Units (Sold Separately)

• MRCOOL DIY-12-HP-WMAH-230D25-O Wall Mount Air Handler
• MRCOOL DIYCASSETTE12HP-230D25-O OuttaSight® Ceiling Cassette

NOTE: This 12K Hyper Heat condenser is 208/230V only and will not work with 115V DIY air handlers.

---

Feature Highlights

• Hyper Heat operation down to -22°F
• Inverter-driven rotary compressor for high efficiency and low noise
• R-454B next-generation refrigerant
• Factory-sealed QuickConnect® line set — no field charging
• DIY-friendly installation with basic tools
• Gold Fin® condenser coil for long-term corrosion resistance
• Energy-efficient performance for year-round heating and cooling

---

Specifications

Performance
BTU Capacity	12,000 BTU
Coverage Area	Up to approximately 500 sq. ft.
Operating Range	Heats down to -22°F (Hyper Heat)
Compressor Type	Inverter Rotary

Electrical
Voltage	208/230V
Phase / Frequency	1 Phase, 60 Hz
Minimum Circuit Ampacity (MCA)	15 A
Max Fuse / Breaker	15 A (double pole)

Refrigeration & Piping
Refrigerant	R-454B
Line Set Included	25 ft QuickConnect® pre-charged line set
Liquid Line Size	1/4"
Suction Line Size	3/8"

Dimensions & Weight
Unit Width	31.69 in
Unit Height	21.81 in
Unit Depth	12.99 in
Unit Weight	Approx. 72.31 lbs

Smart Controls (with Compatible Indoor Unit)

• MRCOOL SmartHVAC™ App (iOS & Android)
• Amazon Alexa & Google Assistant integration
• Scheduling, remote access, and smart comfort modes
