MRCOOL Easy PRO 18,000 BTU DIY Mini Split Heat Pump (230V) – R-454B Refrigerant

The MRCOOL DIY 5th Gen EZPRO 18,000 BTU Mini Split Heat Pump (230V) is a high-performance ductless heating and cooling system designed for fast, straightforward DIY installation. Built for homeowners who want professional-grade comfort without professional-grade installation costs, the EZPRO delivers reliable year-round performance with modern efficiency and smart control compatibility.

This single-zone DIY mini split system uses next-generation R-454B refrigerant, offering improved energy efficiency and a lower environmental impact compared to older refrigerants. Inverter-driven technology allows the system to automatically adjust output based on demand, delivering consistent temperatures, reduced energy consumption, and whisper-quiet operation.

Unlike traditional mini split systems that require vacuum pumps, refrigerant charging, or specialized HVAC tools, the EZPRO is engineered for true DIY installation. The outdoor condenser, indoor air handler, and included 16 ft pre-charged Quick Connect® line set are factory-sealed and ready to install, eliminating the need for brazing or professional service. This system is built on the same proven DIY connection platform as MRCOOL’s higher-end E-Star systems, offering the same reliability with simplified configuration.

The EZPRO 18K BTU mini split is ideal for spaces up to approximately 750 square feet, including garages, workshops, home offices, basements, bonus rooms, additions, and detached buildings. With dependable heating performance for most climates, it’s an excellent choice for homeowners, landlords, and small business owners looking for efficient, flexible comfort solutions.

As a factory-authorized MRCOOL retailer, MRCOOL DIY Direct ships genuine, warrantied equipment nationwide and supports every purchase with expert guidance before and after installation.

Built on MRCOOL’s proven DIY Quick Connect line set system, the EZPRO platform eliminates the need for vacuum pumps or professional installation.

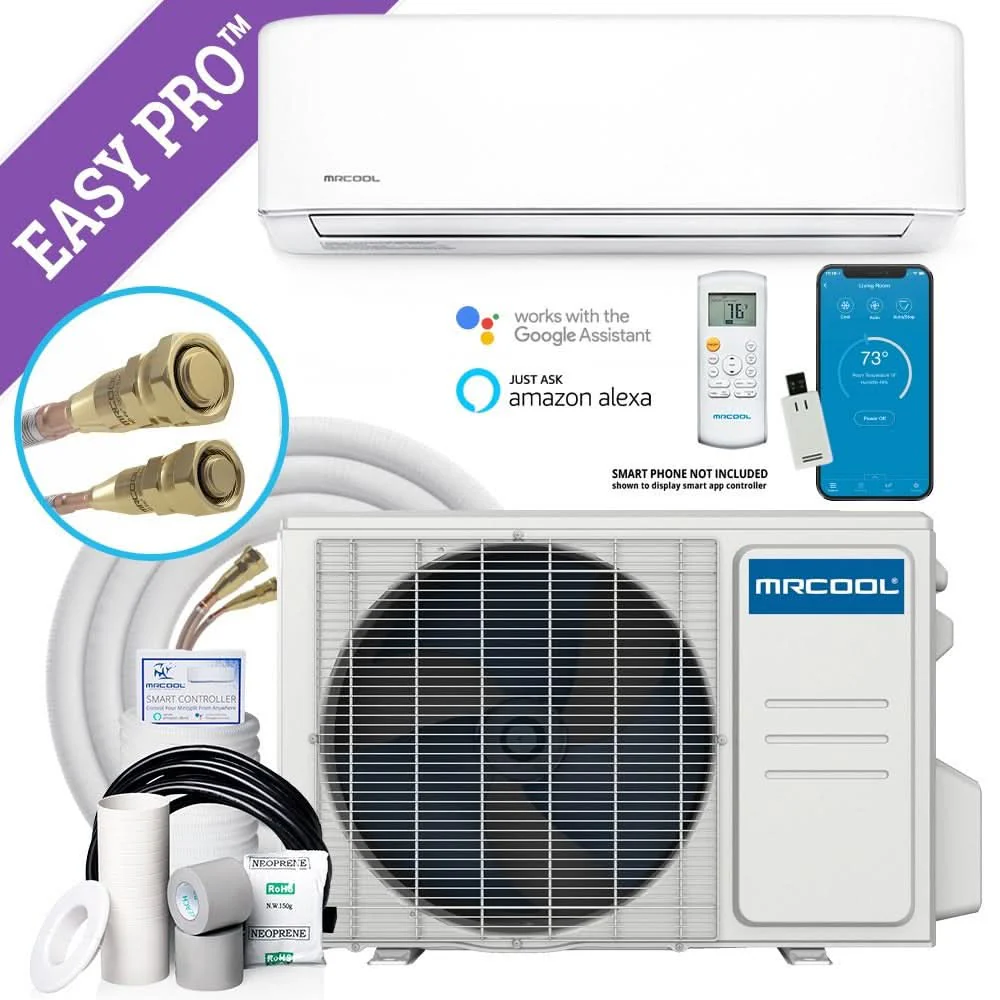

What's Included?

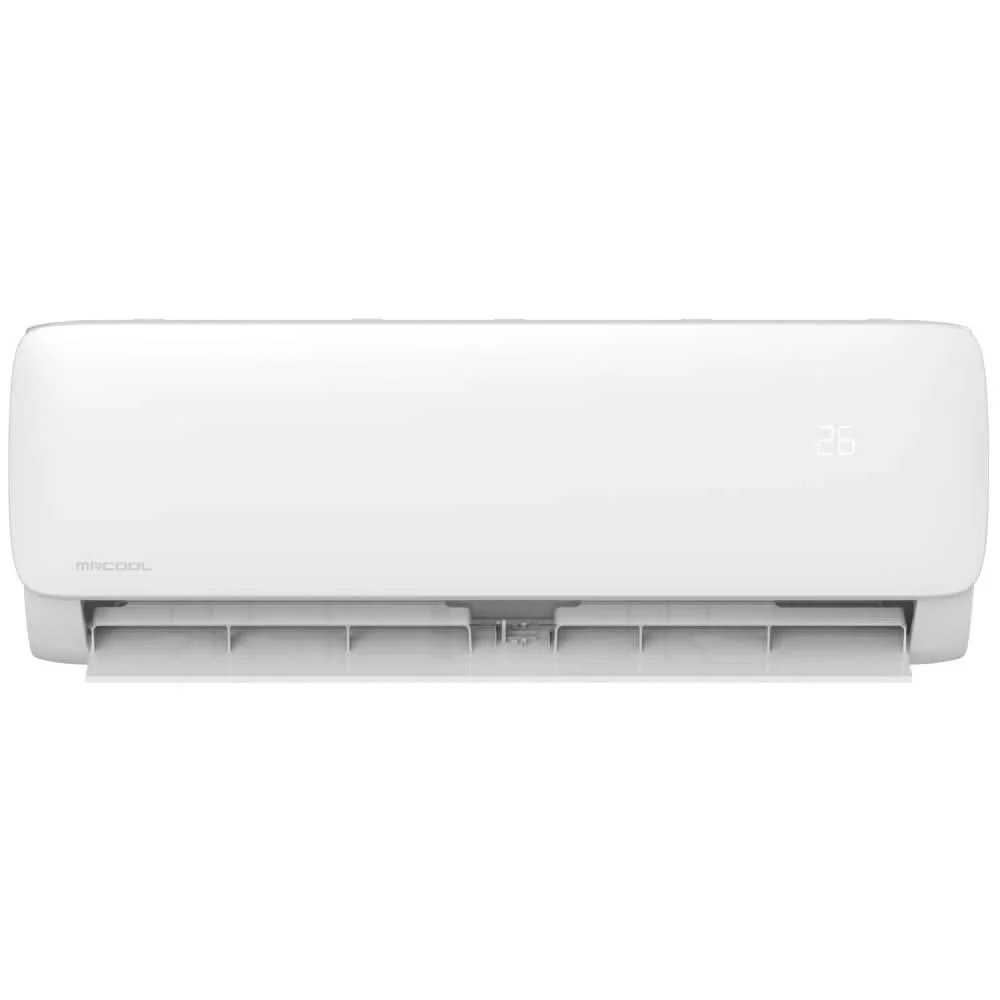

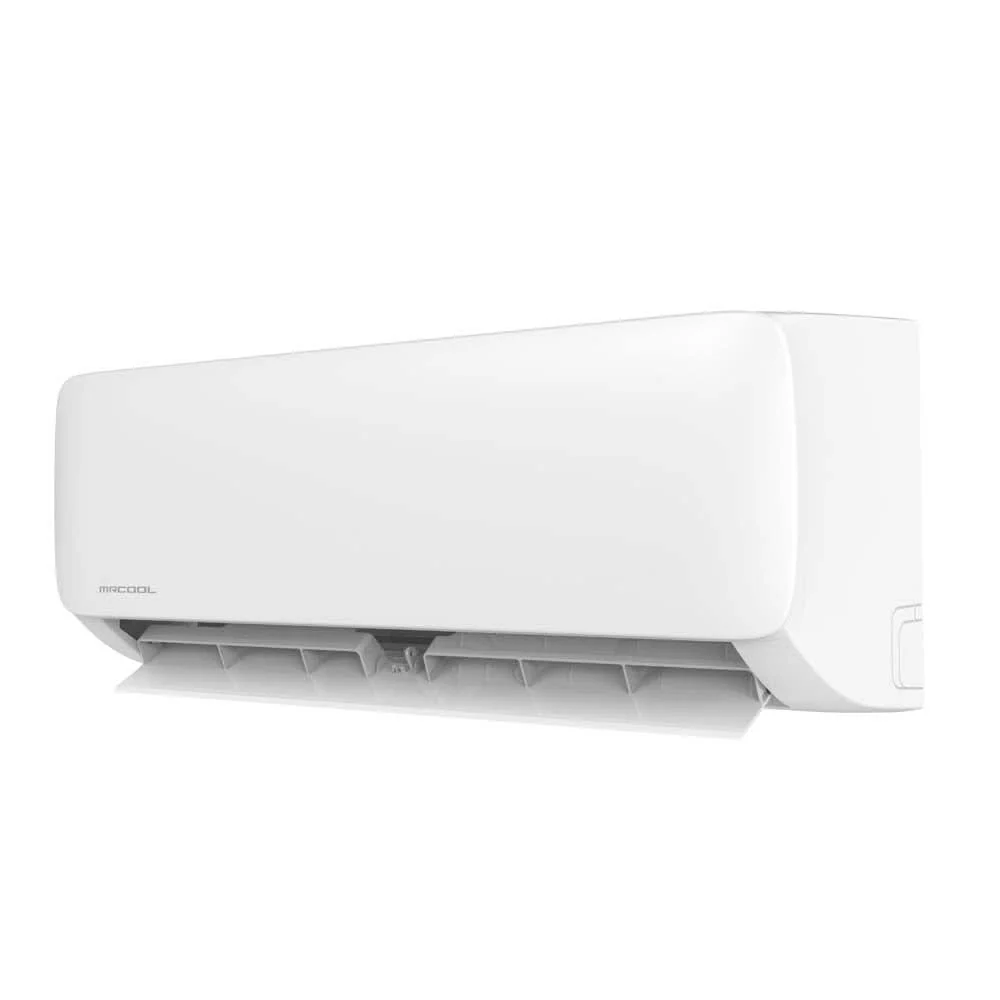

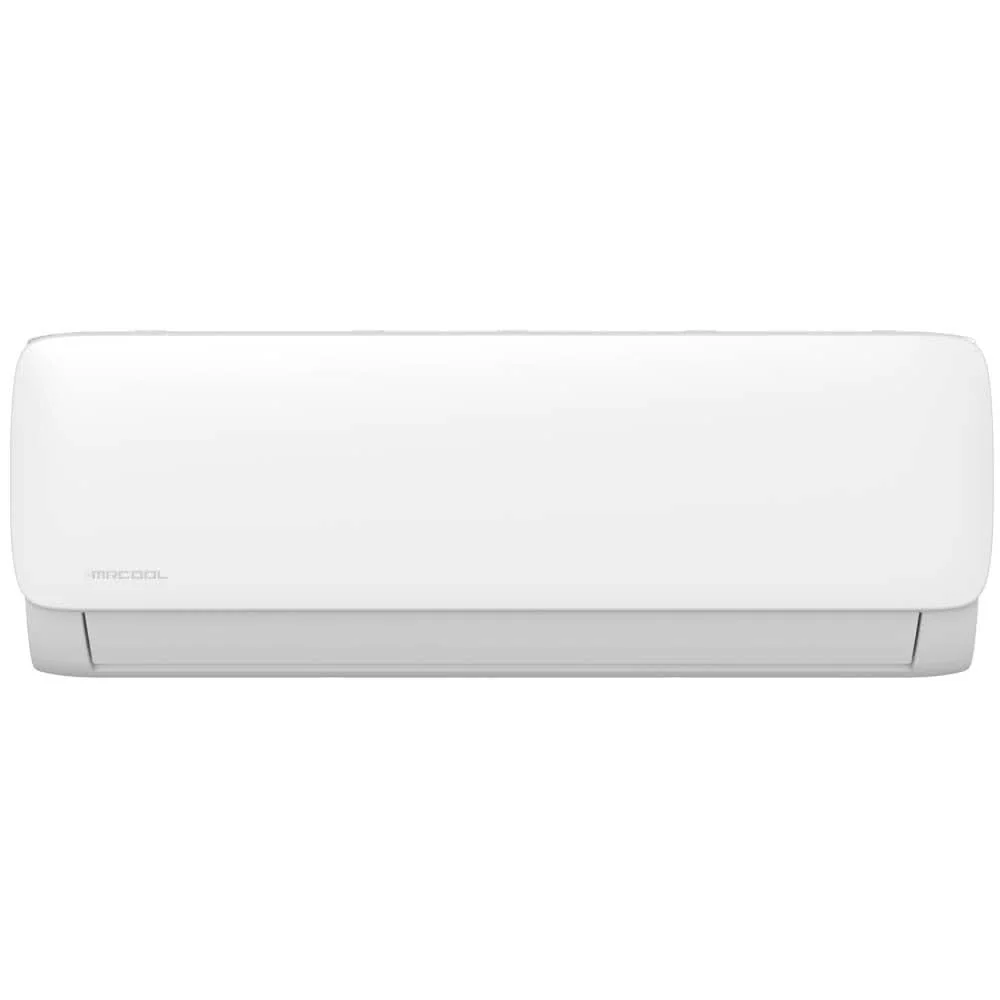

• 18,000 BTU Wall-Mounted Air Handler

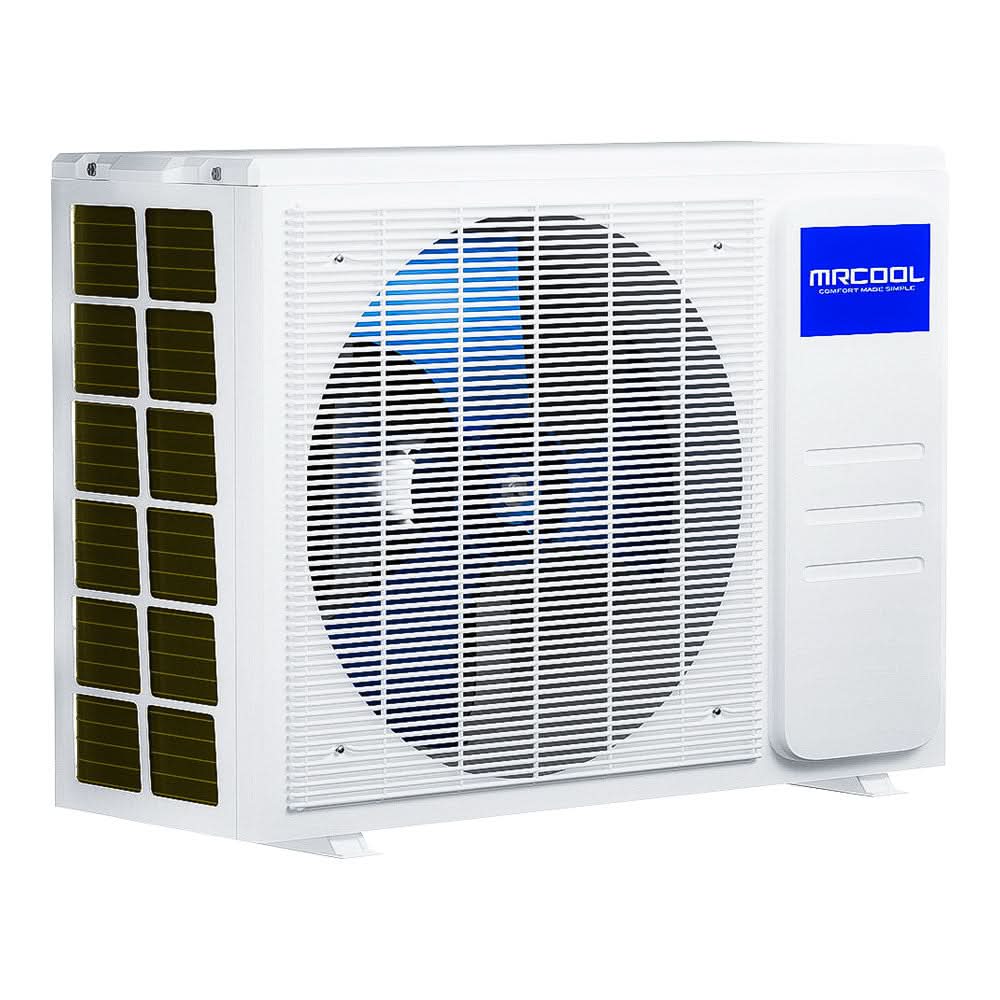

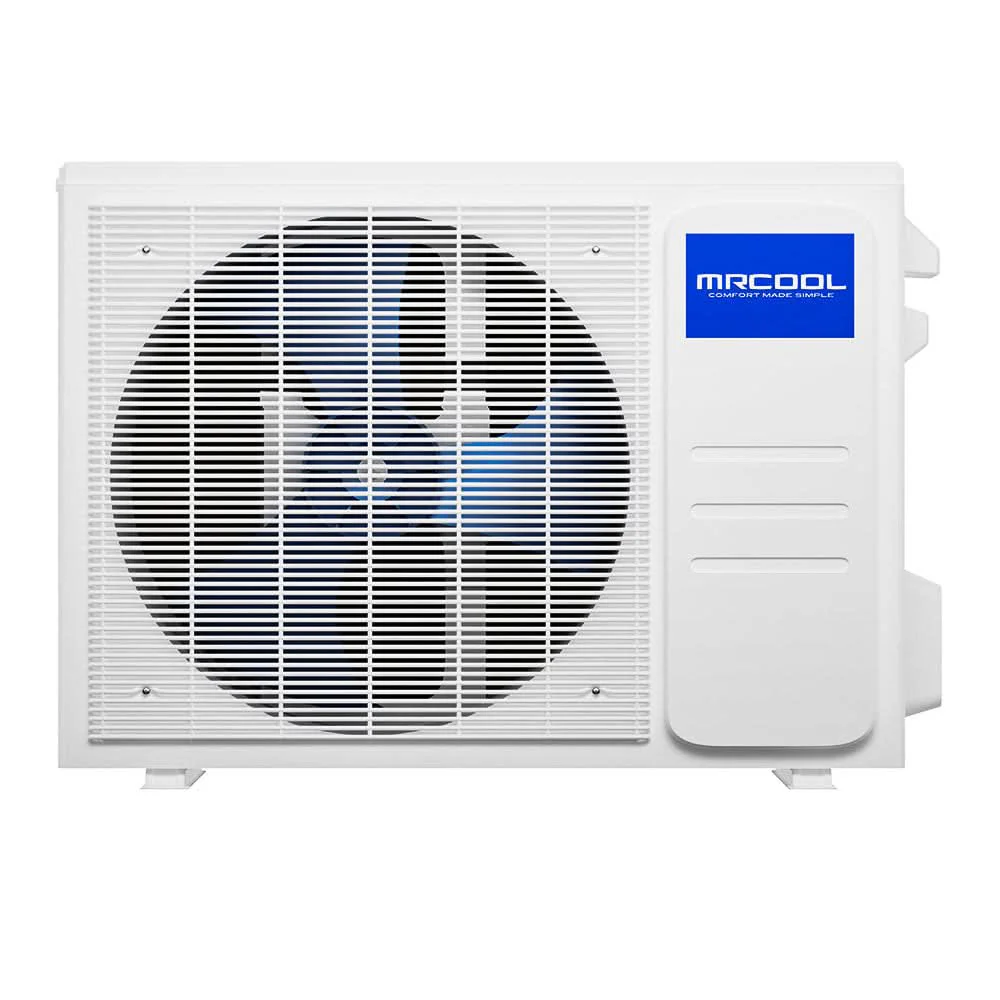

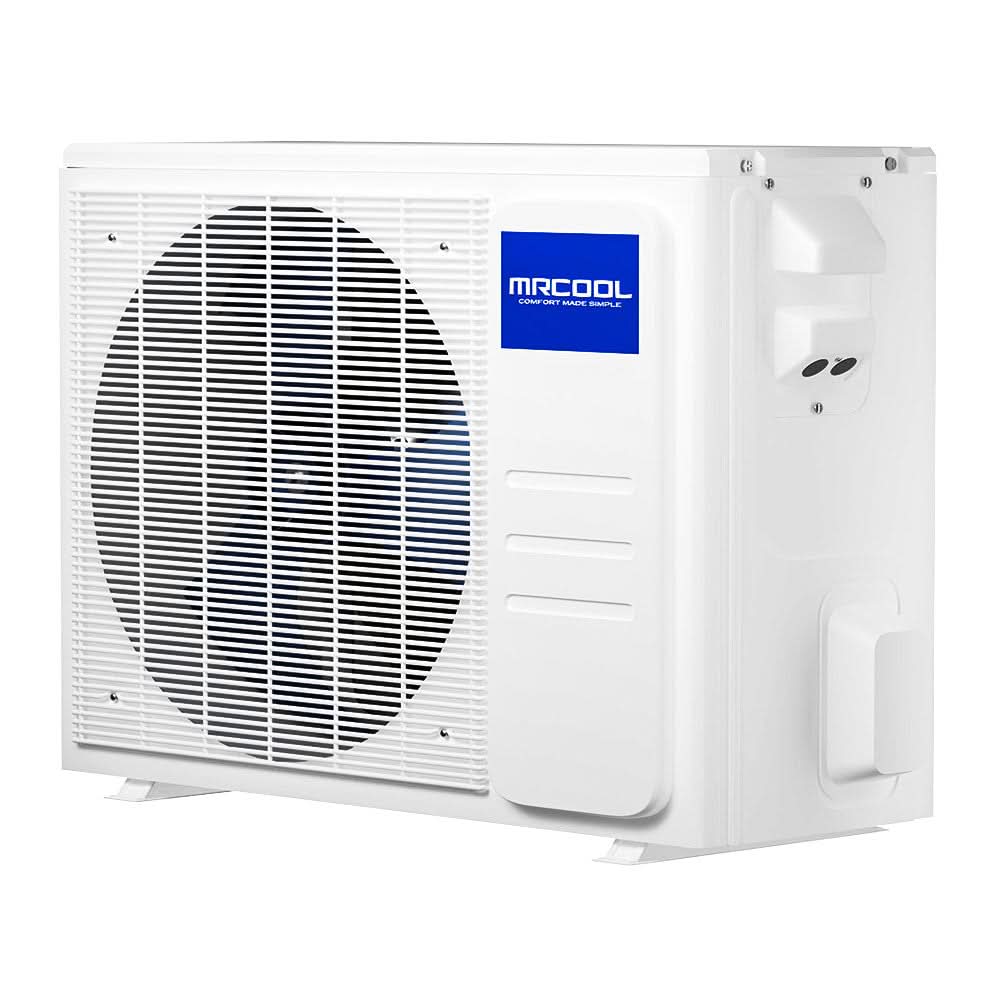

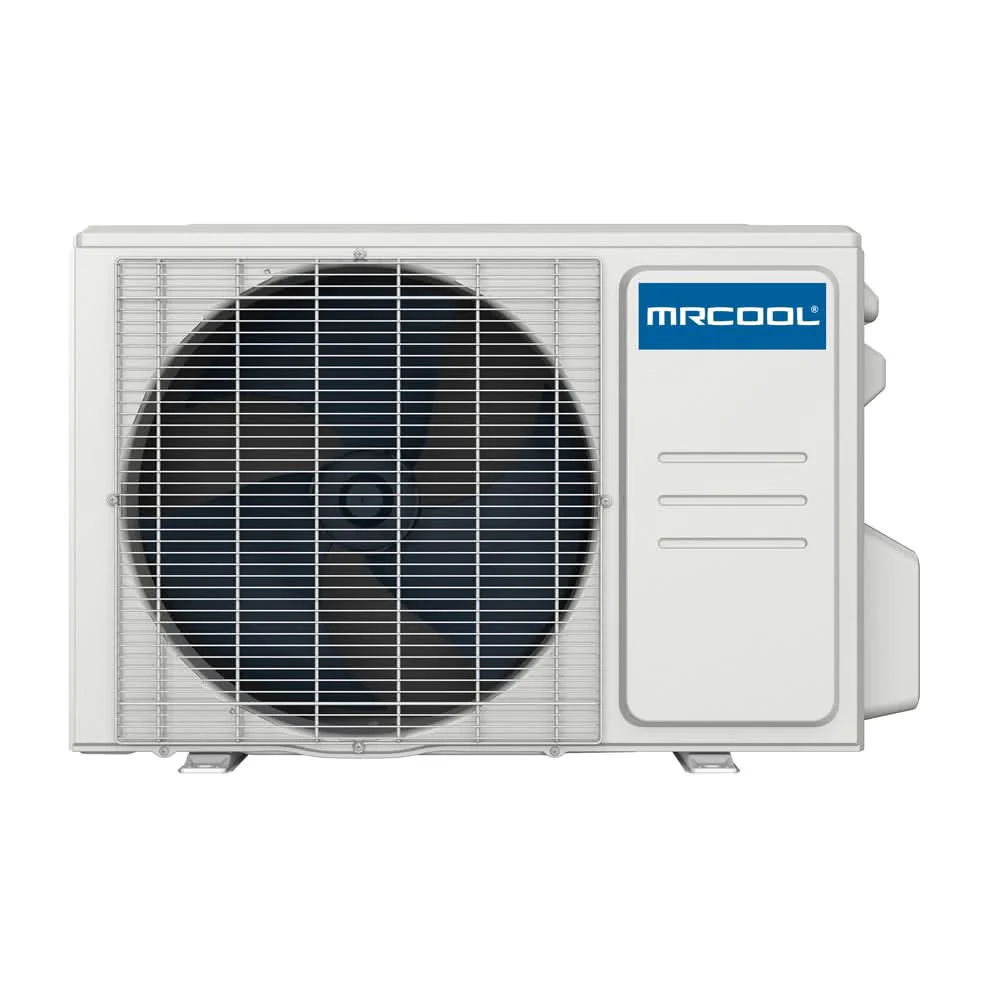

• 18,000 BTU Outdoor Condenser (Pre-Charged with R-454B)
• 16' Pre-Charged Line Set with Quick Connect® Fittings
• Smart HVAC WIFI Module
• Remote Control

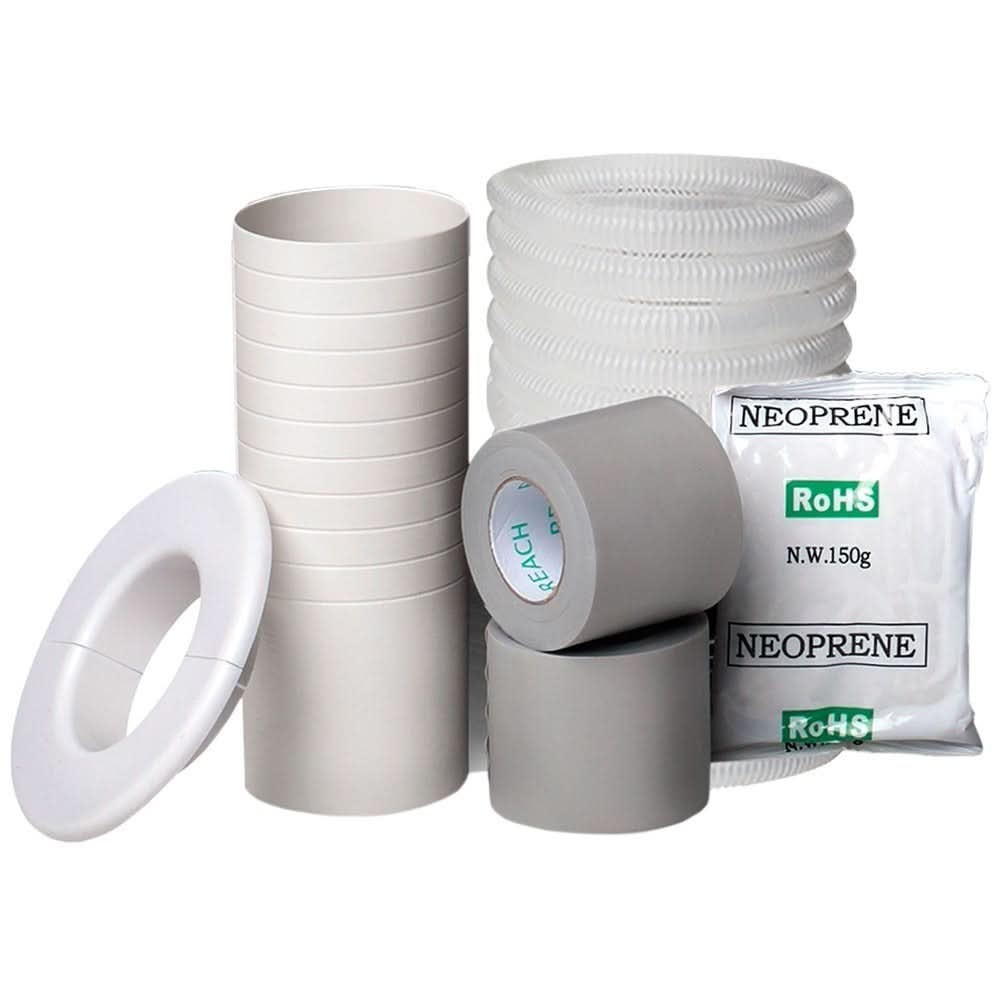

• Installation Accessories & Manual

Get unmatched performance, unbeatable support, and true peace of mind from MRCOOL DIY Direct—America’s most trusted independent MRCOOL dealer. Fast shipping, factory-backed warranty, and expert customer service included.

Specifications & Dimensions

System Specifications Feature Detail Feature Detail Feature Detail Model Number EZPRO-18-HP-23016-O System Type Single-Zone DIY Mini-Split Cooling Capacity 18,000 BTU Heating Capacity 18,000 BTU Refrigerant R-454B (Eco-Friendly) Compressor Type DC Inverter SEER2 Rating Up to 18.5 HSPF2 Rating Up to 8.7 Voltage / Frequency 230V / 60Hz Max Amperage 18.7 A Coverage Area Up to 750 sq. ft. Operating Temp (Heat) Down to 5°F Line Set Included 16 ft. Pre-Charged (R-454B) Installation Type DIY – Fast Connection® WiFi & Smart Controls Yes – App + Alexa + Google Indoor Noise Level 39.5 dB(A) Low / 48 dB(A) High Outdoor Noise Level 58 dB(A) Certifications AHRI Certified, ETL Listed Warranty 1-Year Compressor / 2-Year Parts Ideal Applications Bedrooms, Garages, Studios, Offices

Dimensions Component Width Height Depth Component Weight Indoor Air Handler 38.98 in 12.40 in 8.46 in Indoor Air Handler 24.25 lbs Outdoor Condenser 31.10 in 21.85 in 13.11 in Outdoor Condenser 86.43 lbs
