MRCOOL Hyper Heat 2nd Gen 48K BTU 4 Ton 16.5 SEER2 Central Ducted Heat Pump Split System – CENTRAL-48-HP-230B00-O

Stay comfortable through every season with the MRCOOL® Hyper Heat 2nd Gen 48K BTU Central Ducted System, engineered to deliver reliable performance even in extreme temperatures. Featuring an impressive SEER2 rating of up to 16.5 and an HSPF2-4 rating of 9.5, this high-efficiency heat pump split system is perfect for homes looking to upgrade to smarter, more sustainable HVAC technology.

Powered by MRCOOL's advanced inverter technology and the latest environmentally friendly R-454B refrigerant, this 4-ton Hyper Heat unit ensures maximum comfort with minimal impact. Compatible with the VersaPro™ Central Ducted Air Handler, this system offers unmatched flexibility, whether you're doing a new install or replacing an outdated system.

---

🌟 Key Features & Benefits:

• Year-Round Comfort: Delivers strong heating and cooling in both sub-zero winters and scorching summers.

• Energy Efficient: Achieve lower utility bills with up to 16.5 SEER2 cooling efficiency and 9.5 HSPF2-4 heating performance.

• Smart Thermostat Control: Easily manage your indoor climate with the included MRCOOL® Smart Thermostat or the SmartHVAC App, compatible with Alexa, Google Assistant, and Siri.

• Quick & Easy Installation: Designed to work with No-Vac® Quick Connect® Line Sets—pre-charged with R-454B refrigerant for faster setup. Copper stub pipes and flare fittings included for traditional installs.

• Versatile Configuration: Compatible with upflow, downflow, and horizontal applications when paired with the VersaPro air handler.

• Eco-Friendly Refrigerant: Uses R-454B, a more sustainable choice with lower global warming potential.

• Durable Build: Heavy-duty painted galvanized steel cabinet resists corrosion and harsh weather.

• Hassle-Free Maintenance: Slide-out blower, compact air handler design, and self-diagnostics panel simplify service and upkeep.

• Peace of Mind Warranty: Covered by an industry-leading 10-year parts, compressor, and labor warranty (labor coverage activates automatically upon installation).

---

🔧 Technical Specs:

• Capacity: 48,000 BTU (4 Ton)

• SEER2: Up to 16.5

• HSPF2-4: Up to 9.5

• Refrigerant: R-454B

• Voltage: 208/230V, 1-Phase, 60Hz

• Compatible Line Set: No-Vac® Quick Connect® (sold separately)

---

📦 What’s Included:

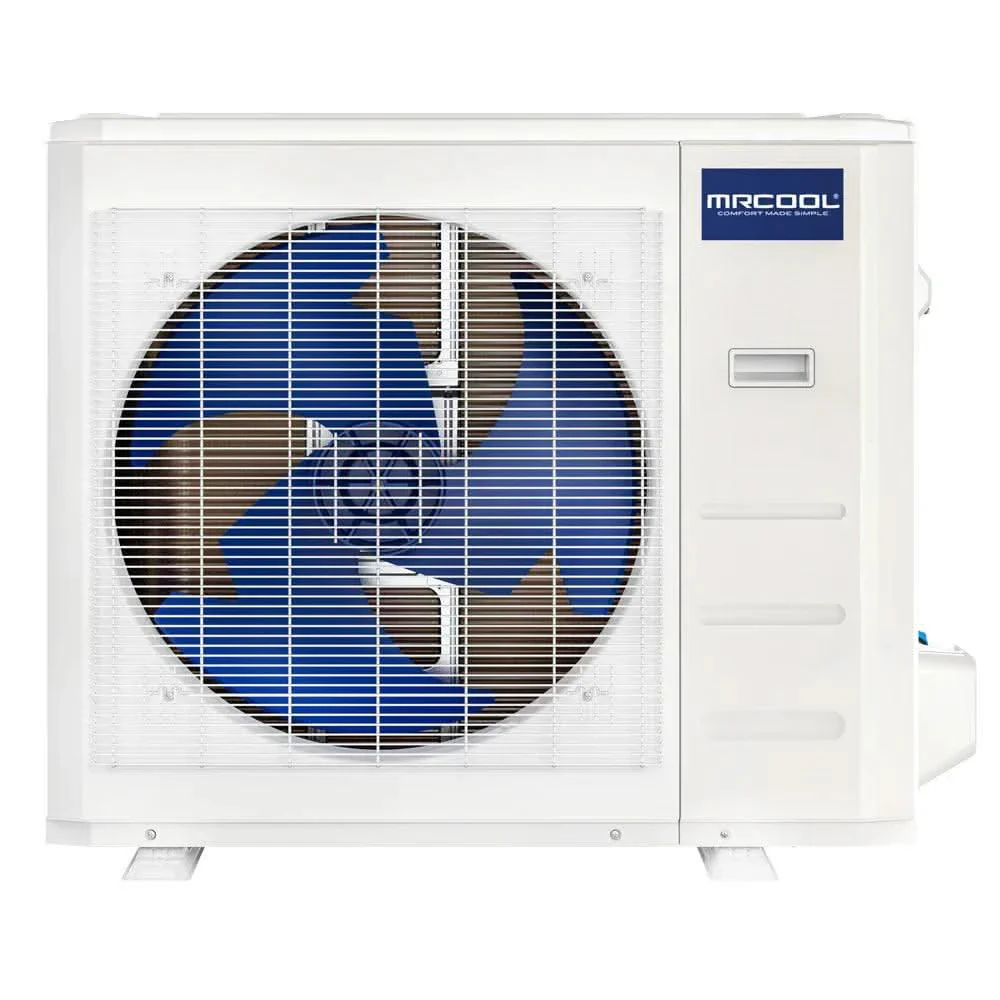

• 48K BTU MRCOOL® Hyper Heat 2nd Gen Outdoor Condenser (CENTRAL-48-HP-230B00-O)

• Stub pipes and flare nut fittings

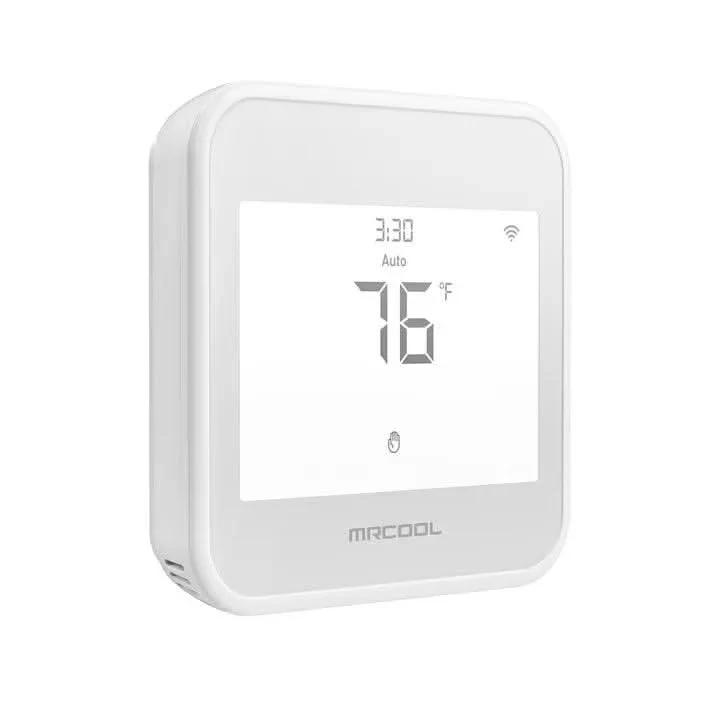

• MRCOOL® Smart Thermostat

• 10-Year Warranty (parts, compressor, and labor)

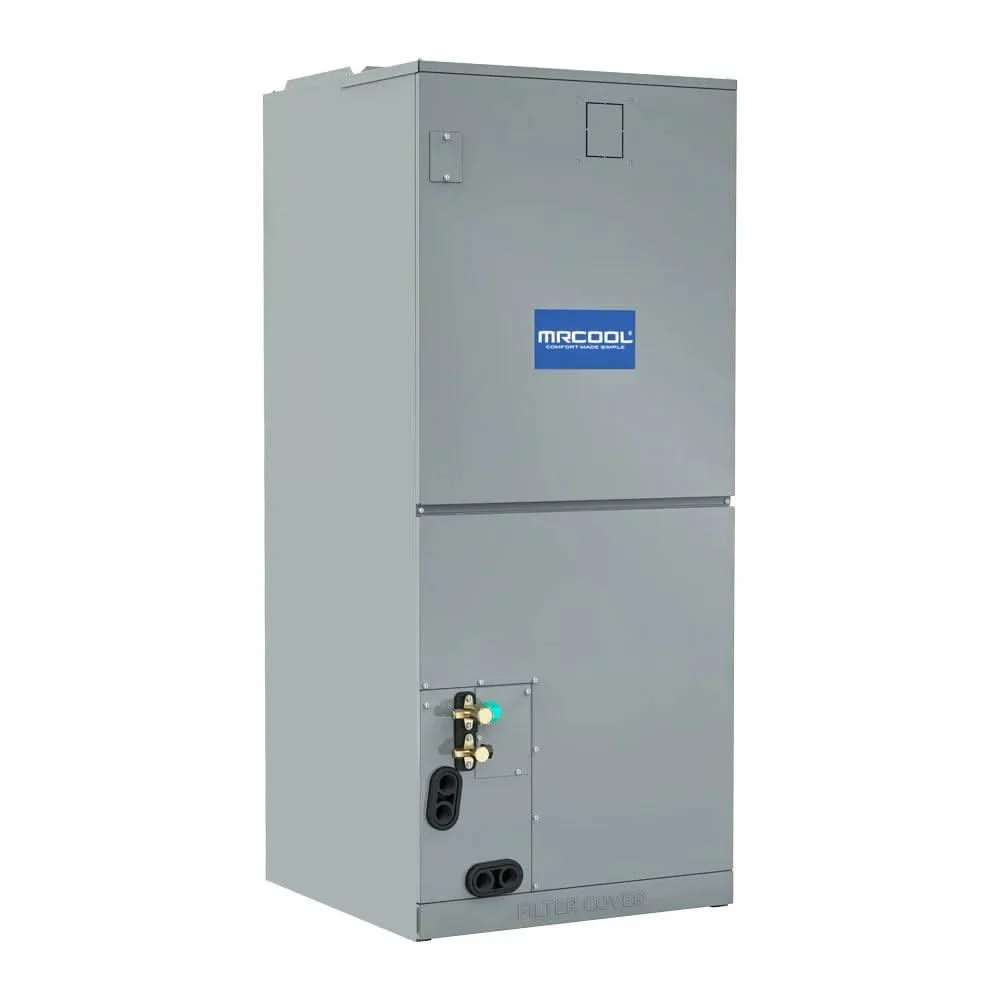

Note: Air handler, line sets, and heat kits are sold separately. For best results, pair with the MRCOOL® VersaPro™ 48K Central Ducted Air Handler.

---

💡 Why Buy from MRCOOL DIY Direct?

As the USA’s most trusted MRCOOL® dealer, MRCOOL DIY Direct offers unbeatable prices, fast shipping, expert support, and genuine MRCOOL® products backed by real warranties. Whether you're a DIYer or a pro, we’ve got you covered—every step of the way.

Specifications & Dimensions

Category	Specification
Cooling Capacity (Btu/h)	48,000
SEER2	16.5
EER2	10.5
Heating Capacity (Btu/h)	50,000
HSPF2-4	9.5
HSPF2-5	8.0
Indoor Noise Level (Turbo/Hi/Mi/Lo)	52 / 50 / 34 dB(A)
Outdoor Noise Level	65.0 dB(A)
Power Supply (Indoor)	208/230V ~ 60Hz, 1ph
Power Supply (Outdoor)	208/230V ~ 60Hz, 1ph
Min Circuit Ampacity (Indoor)	14.5 / 11.0 A
Max Fuse (Indoor)	15 A
Min Circuit Ampacity (Outdoor)	38.0 A
Max Fuse (Outdoor)	40.0 A
Indoor Unit Dimensions (WxDxH)	21.02 x 24.49 x 52.99 in
Indoor Packing Dimensions (WxDxH)	27.95 x 26.77 x 56.50 in
Indoor Net/Gross Weight	162.92 / 190.92 lbs
Outdoor Unit Dimensions (WxDxH)	38.58 x 16.34 x 38.39 in
Outdoor Packing Dimensions (WxDxH)	45.08 x 19.68 x 42.52 in
Outdoor Net/Gross Weight	201.06 / 232.36 lbs
Indoor Airflow (CFM Turbo/Hi/Mi/Lo)	1601 / 1471 / 1283 / 1094
Outdoor Airflow (CFM)	3037.1
Refrigerant Type	R-454B
Refrigerant Charge	134.04 oz
Piping Size (Liquid/Gas)	3/8" - 3/4"
