Condensate Pump for Mini Split Ductless Air Conditioners, Multi Voltage

Ultra-Silent & Compact Mute Box Condensate Pump – Budget-Friendly & Reliable

Designed for air conditioning systems with limited space, this ultra-silent, compact mute box condensate pump offers a budget-friendly drainage solution while ensuring maximum efficiency. With an extremely low noise level of <19dB(A), this pump operates discreetly, making it ideal for residential, commercial, and office installations.

The compact size and multiple mounting options provide versatile placement, while easy installation allows it to be seamlessly integrated into most HVAC projects. It can also be wired alongside a shutoff alarm switch for an added layer of protection. ETL certified, this pump meets strict safety and performance standards for reliable operation.

Key Features & Benefits:

✅ Ultra-Silent Performance – Operates at <19dB(A) for whisper-quiet drainage
✅ Compact & Space-Saving Design – Ideal for tight installations in air conditioning units

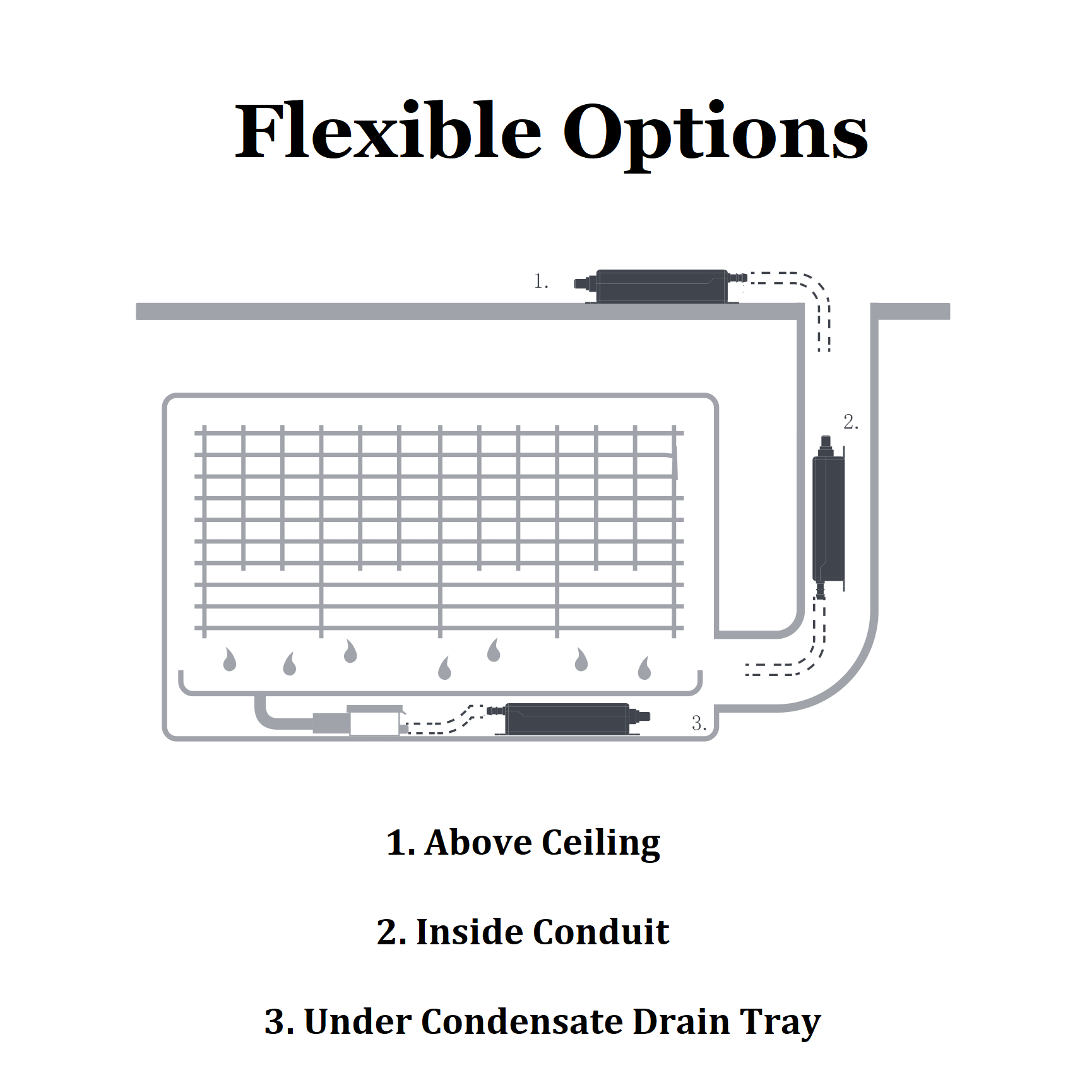

✅ Multiple Placement Options – Flexible mounting for various HVAC setups
✅ Budget-Friendly Solution – High efficiency at an affordable price

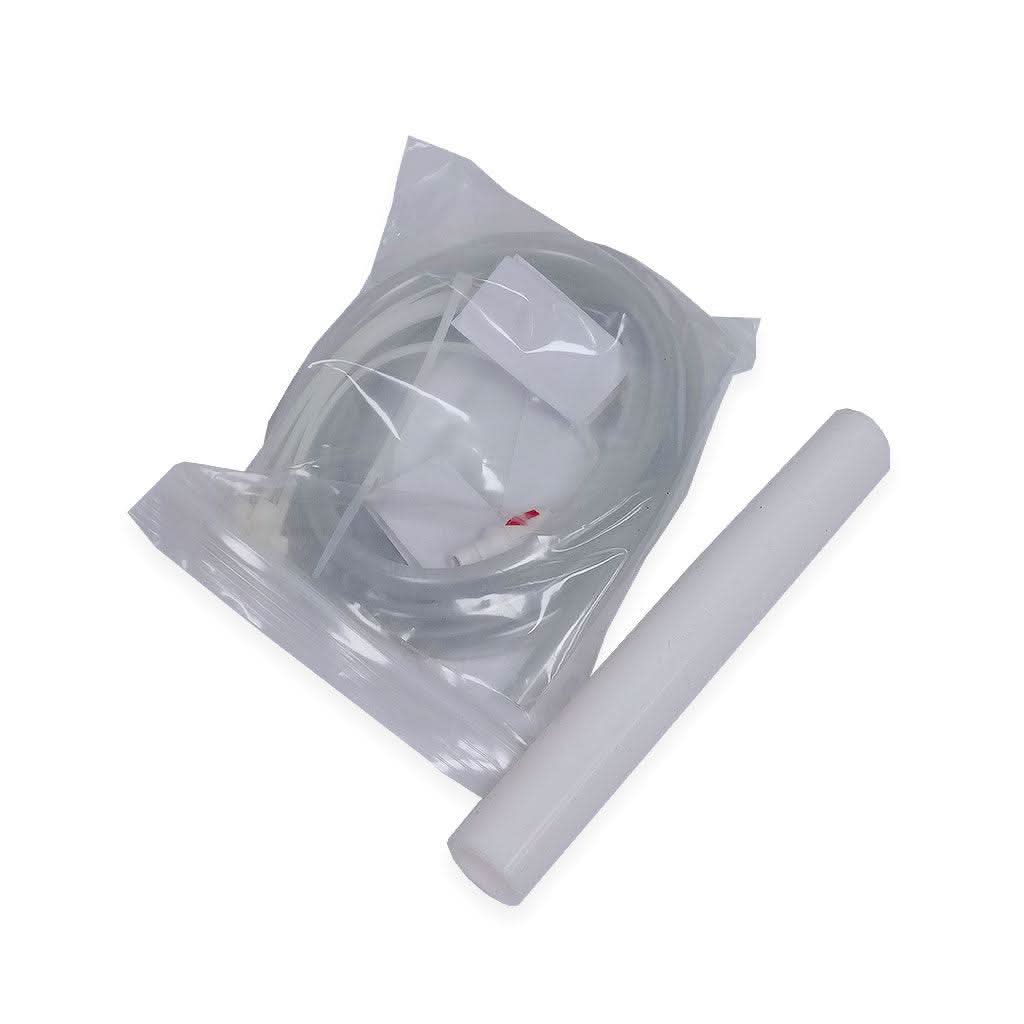

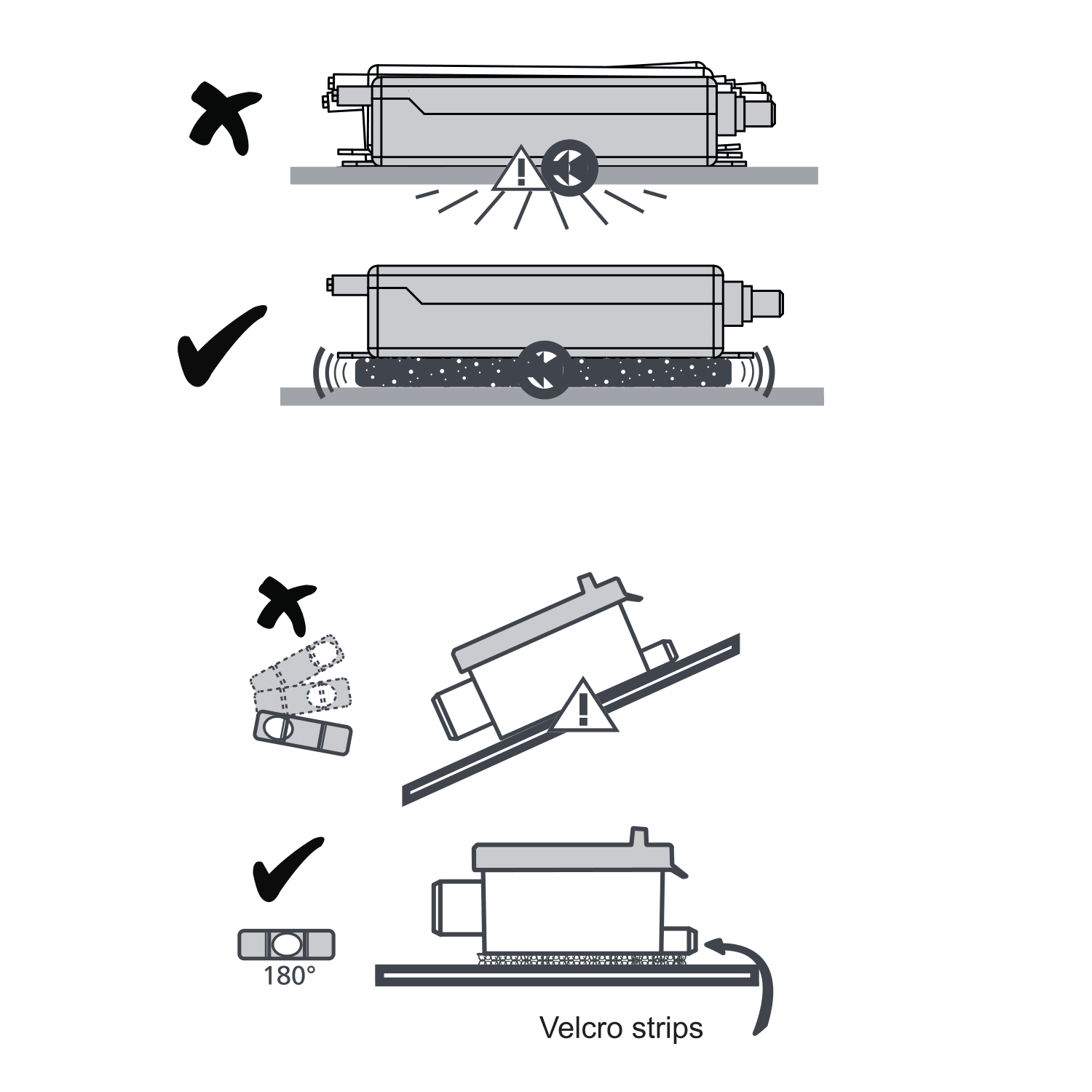

✅ Easy Installation – Comes with all necessary components for hassle-free setup

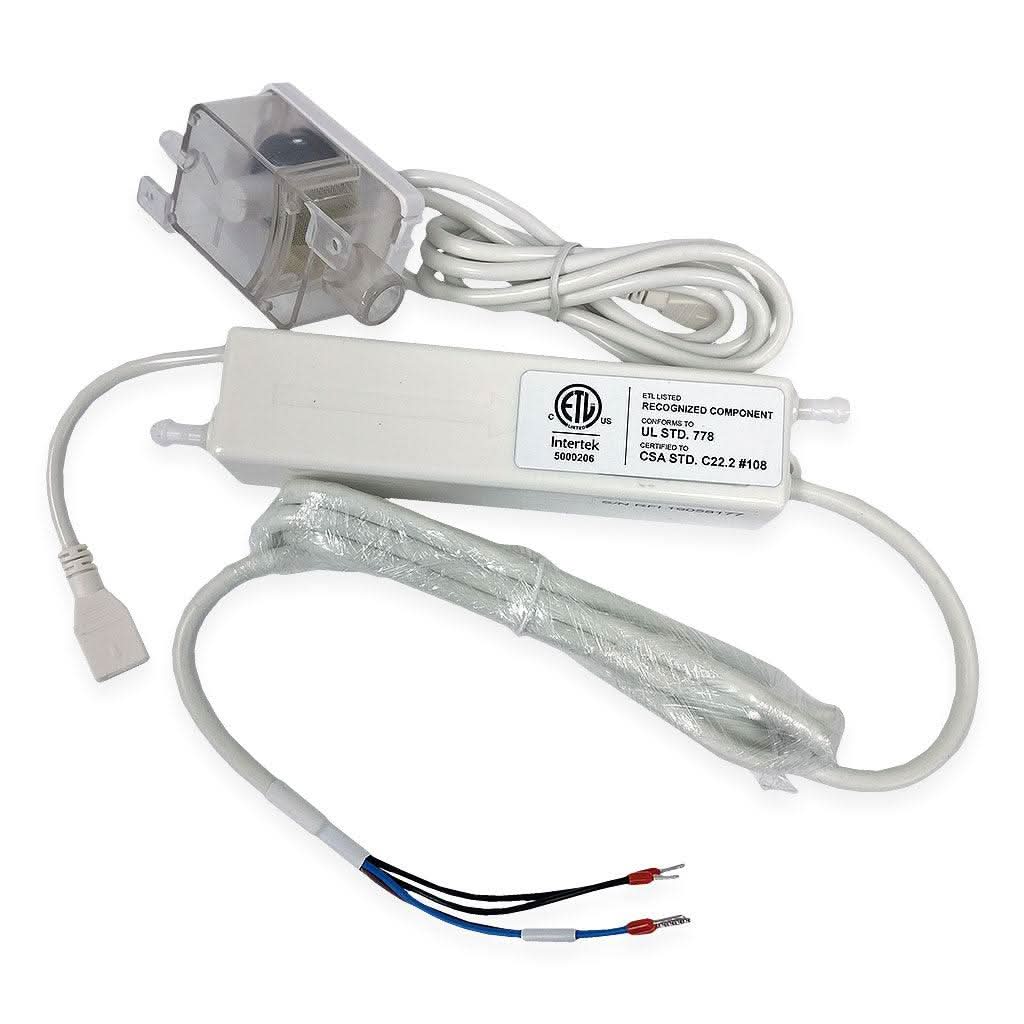

✅ Safety Certified – ETL certified, includes IPX5 & thermal protection
✅ Compatible with Shutoff Alarm Switch – Can be wired as a backup for added security

---

Technical Specifications:

Performance Data:

• Power Supply: 100-240VAC / 50-60 Hz

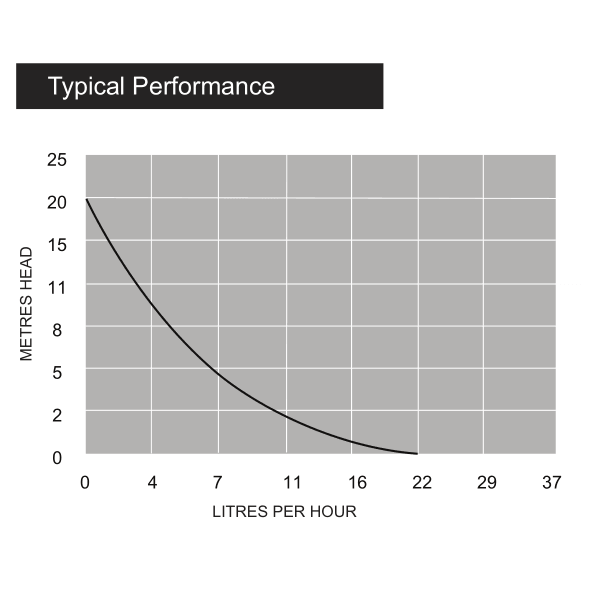

• Max Flow Rate: 22L/hr @ 0 head
• Sound Level: <19dB(A) @ 1m
• Tank Capacity: 40ml
• Max Recommended Head: 20m
• Max Unit Output: 28kW / 95,550 BTU/hr
• Safety Switch: 3A Normally Closed
• Max Water Temperature: 158°F
• Discharge Tube Size: 6mm ID

Protection & Certifications:

• Class II Appliance
• Continuous Rated
• IPX5 Protection
• Thermal Protection
• Fully Potted for Safety

Dimensions (L x W x H):

• 18.5cm x 3.6cm x 3.4cm

---
