MRCOOL DIY Mini Split - 54,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM248HPW04C00

MRCOOL DIY Mini Split - 54,000 BTU 2-Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit (DIYM248HPW04C00)

The MRCOOL DIY 4th Gen 54,000 BTU 2-Zone Mini Split System provides powerful, energy-efficient heating and cooling for two separate spaces. This system includes a 48,000 BTU multi-zone condenser, one 18K BTU wall-mounted air handler, one 36K BTU wall-mounted air handler, and two pre-charged 16 ft. line sets. Designed with DIY installation in mind, this advanced HVAC solution allows you to enjoy year-round comfort while saving on professional installation costs.

---

What’s Included

1. MRCOOL DIY 48K BTU Multi-Zone Condenser:

   • Produces up to a 20.5 SEER efficiency rating, ensuring lower energy bills.
   • Operates effectively in extreme temperatures, heating as low as 5°F and cooling up to 122°F.
   • Includes a limited lifetime compressor warranty when registered with the MRCOOL Care Program.

2. Wall-Mounted Air Handlers:

   • 18K BTU Air Handler:
     • Covers up to 750 sq. ft., ideal for medium-sized rooms or offices.
   • 36K BTU Air Handler:
     • Covers up to 1,500 sq. ft., perfect for large living areas or open spaces.
   • Both units include multiple operating modes and smart control capabilities.

3. 16 ft. Pre-Charged Line Sets:

   • Pre-filled with R-410A refrigerant for a quick and easy DIY installation.

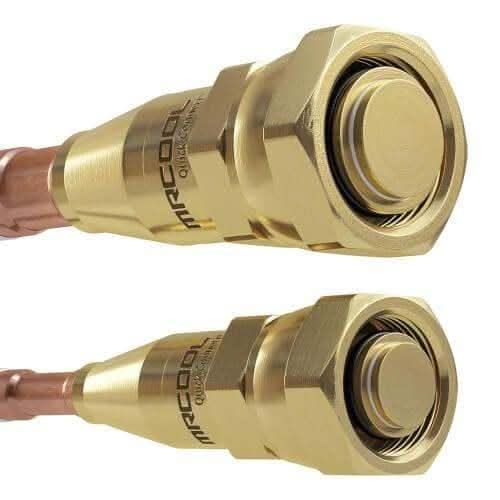

   • Quick Connect® fittings ensure a secure and efficient setup.

4. Comprehensive Installation Kit:

   • Includes mounting plates, screws, insulation materials, and sound-deadening pads for seamless DIY installation.

---

Key Features

1. Energy Efficiency

• 20.5 SEER Efficiency Rating: Provides optimal performance while keeping energy costs low.
• Eco-Friendly Refrigerant: Utilizes R-410A for an environmentally responsible operation.

2. DIY-Friendly Installation

• Pre-Charged Line Sets: No need for specialized tools or professional HVAC technicians.
• Complete Installation Kit: Includes all necessary tools and guides for a hassle-free setup.

3. Advanced Air Handler Features

• Multiple Operating Modes: Cool, Heat, Auto, Dry (dehumidify), Fan-Only, Quiet, and Sleep for personalized comfort.
• Smart Connectivity: Compatible with the Smart HVAC app for remote control via smartphones or tablets.
• Compact and Stylish Design: Easily mounts to any interior wall with included hardware.

4. Reliable Year-Round Performance

• Wide Temperature Range: Operates efficiently in extreme climates, from 5°F to 122°F for cooling and down to 5°F for heating.
• Independent Zone Control: Customize temperature and settings for two distinct areas.

5. Quiet and Durable

• Whisper-Quiet Operation: Provides a peaceful environment, ideal for bedrooms and offices.
• Gold Fin Technology: Protects against corrosion for long-lasting performance.

---

Specifications

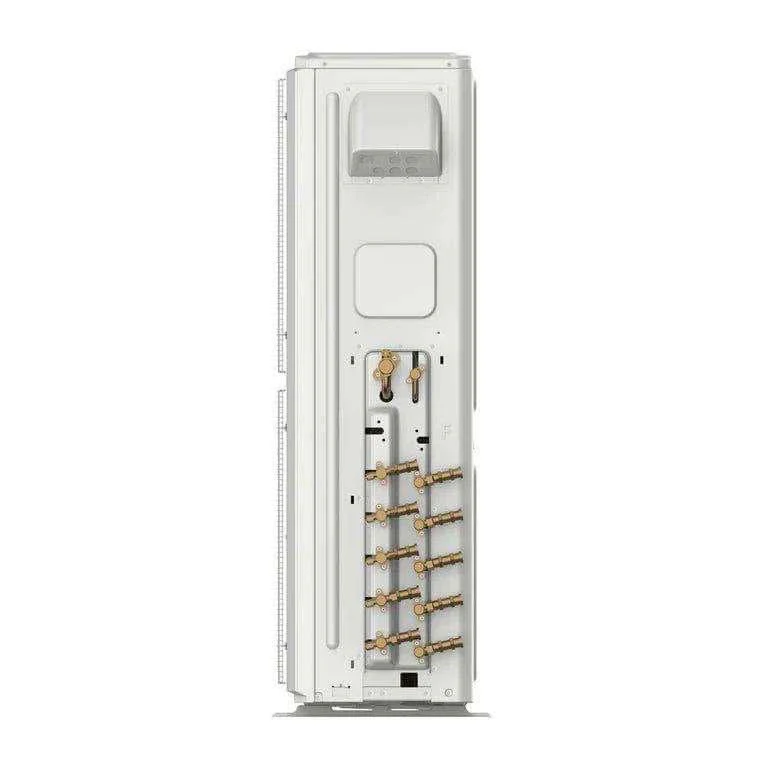

Condenser

• Cooling Capacity: 48,000 BTU
• Heating Capacity: 48,000 BTU
• Efficiency Ratings: SEER: 20.5, EER: 11
• Operating Temperatures: Heating: 5°F to 75.2°F | Cooling: 5°F to 122°F
• Voltage Requirements: 208V-230V/60HZ/40-60A
• Dimensions: 37.48"W x 16.34"D x 52.48"H
• Warranty: 7-year condenser replacement, 5-year parts

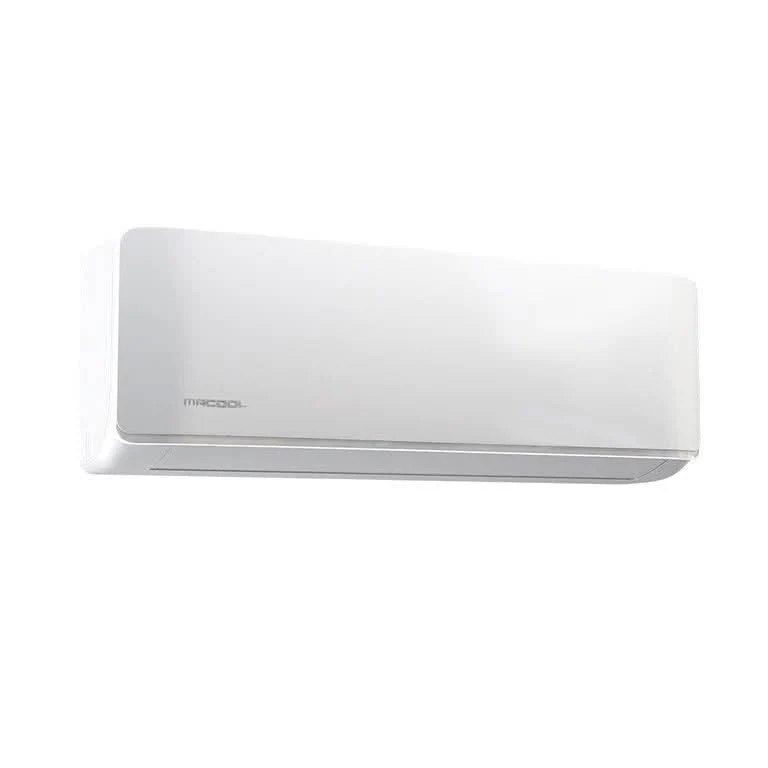

Wall-Mounted Air Handlers

• 18K BTU Air Handler:
  • Coverage Area: Up to 750 sq. ft.
  • Cooling/Heating Capacity: 18,000 BTU
  • Dimensions: 42.52"W x 8.90"D x 13.19"H
  • Modes: Auto, Cool, Heat, Dry, Fan-Only, Quiet, Sleep
  • Warranty: 5-year parts
• 36K BTU Air Handler:
  • Coverage Area: Up to 1,500 sq. ft.
  • Cooling/Heating Capacity: 36,000 BTU
  • Dimensions: 49.57"W x 11.10"D x 14.25"H
  • Modes: Auto, Cool, Heat, Dry, Fan-Only, Quiet, Sleep
  • Warranty: 5-year parts

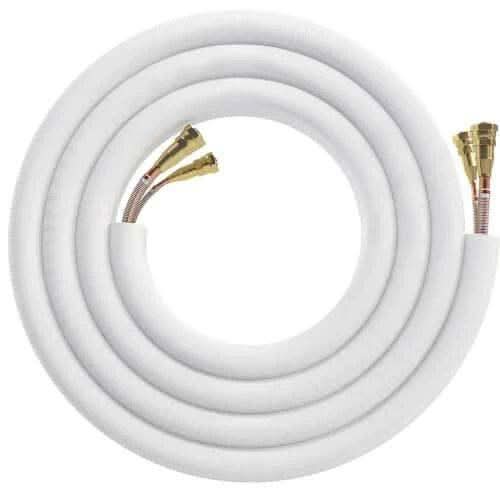

Line Sets

• Length: 16 feet (per zone)
• Liquid Line Size: 1/4" (18K Air Handler), 3/8" (36K Air Handler)
• Suction Line Size: 1/2" (18K Air Handler), 5/8" (36K Air Handler)
• Pre-Charged: Includes R-410A refrigerant

---

Benefits of the MRCOOL DIY 2-Zone Mini Split System

1. Customizable Comfort:

   • Independently control two zones with individual air handlers and remotes.
   • Perfect for medium and large spaces such as bedrooms, living rooms, or open-plan areas.

2. Smart Technology:

   • Monitor and adjust settings remotely using the Smart HVAC app.
   • Compatible with Amazon Alexa and Google Home for voice-activated control.

3. Energy Efficiency:

   • High SEER rating ensures reduced utility bills without compromising comfort.
   • Timer and Sleep modes optimize energy efficiency during non-peak hours.

4. Quiet and Reliable Operation:

   • Operates quietly, making it ideal for bedrooms, offices, and quiet environments.
   • Built with high-quality materials, including Gold Fin Technology for corrosion resistance.

5. DIY Convenience:

   • Avoid professional installation costs with a system designed for simple setup.
   • Includes all tools and accessories needed for a seamless experience.

---

Perfect Applications

• Homes: Heat and cool two separate spaces, such as a bedroom and living room, or an office and workspace.
• Offices: Maintain comfortable temperatures in distinct zones of your work environment.
• Renovations: Flexible for retrofitting older buildings or adding HVAC to new constructions.

---

Order Now

The MRCOOL DIY 4th Gen 54,000 BTU 2-Zone Mini Split System combines powerful performance, energy efficiency, and DIY convenience. Upgrade your space today and enjoy reliable year-round comfort without the hassle of professional installation.

Order now from MRCOOL DIY Direct for the ultimate heating and cooling solution!
