MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM248HPW00C00

MRCOOL DIY Mini Split - 42,000 BTU 2-Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit (DIYM248HPW00C00)

The MRCOOL DIY 4th Gen 42,000 BTU 2-Zone Mini Split System offers powerful, energy-efficient heating and cooling for two separate spaces. With an impressive 48,000 BTU condenser, a 24K BTU wall-mounted air handler, an 18K BTU wall-mounted air handler, and pre-charged 16 ft. line sets, this system is designed for easy installation and smart operation. Whether you're upgrading your home or workspace, this DIY-friendly solution provides year-round comfort.

---

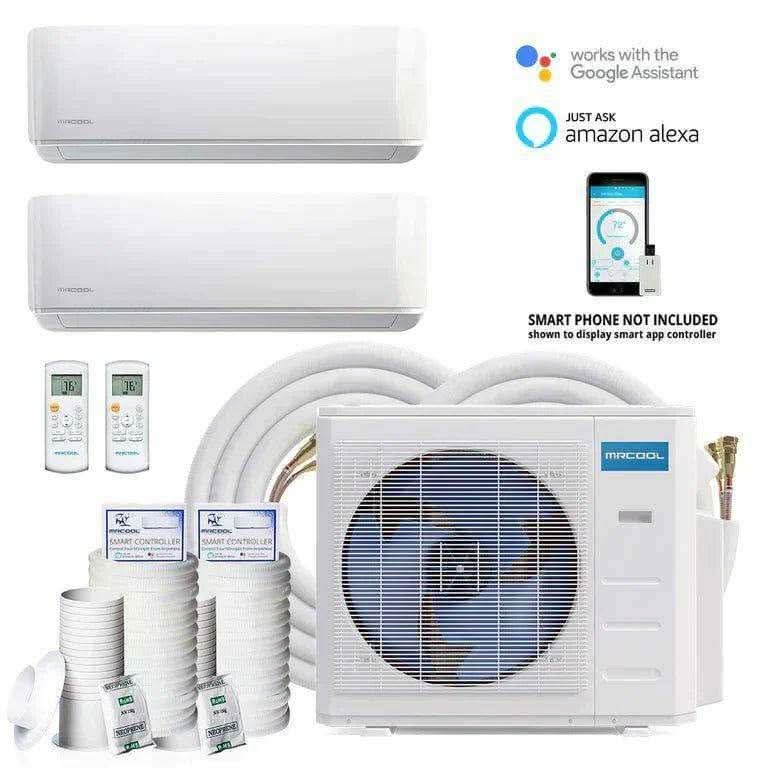

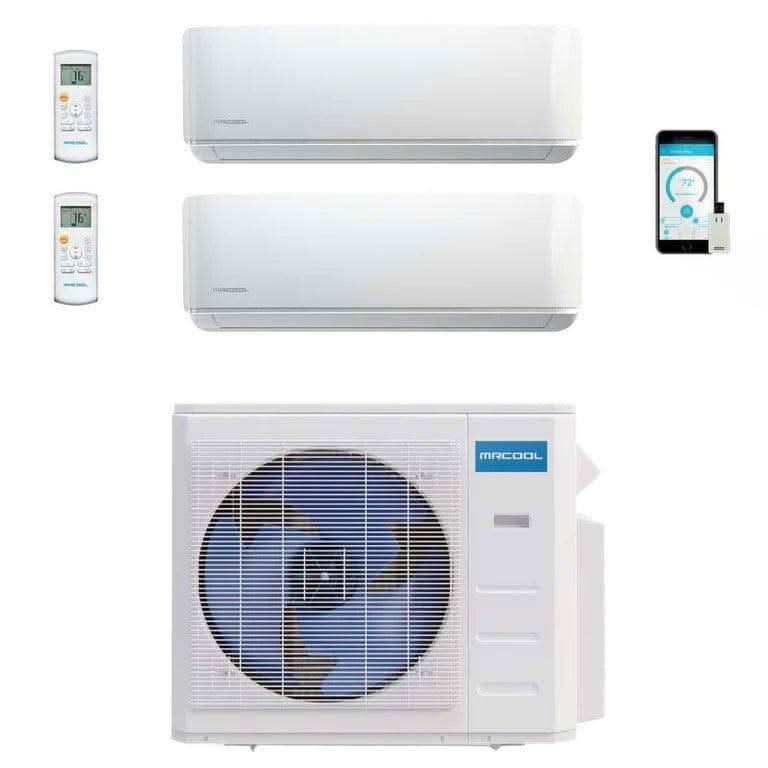

What’s Included

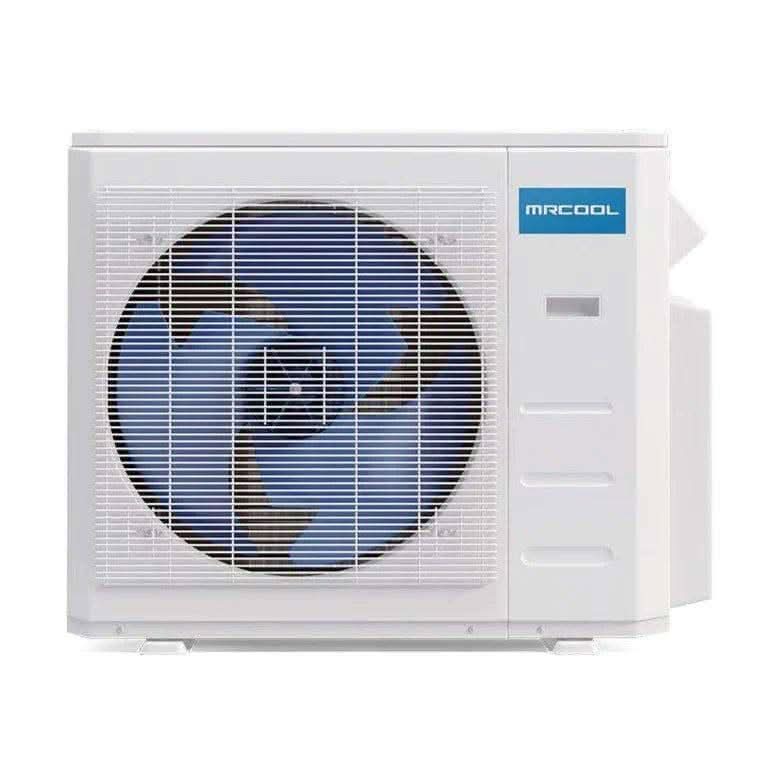

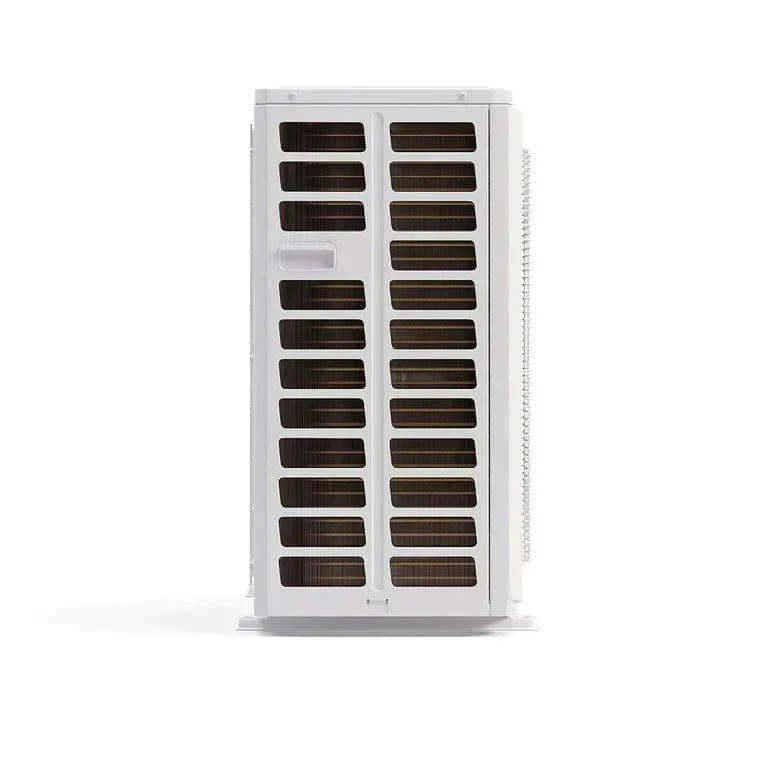

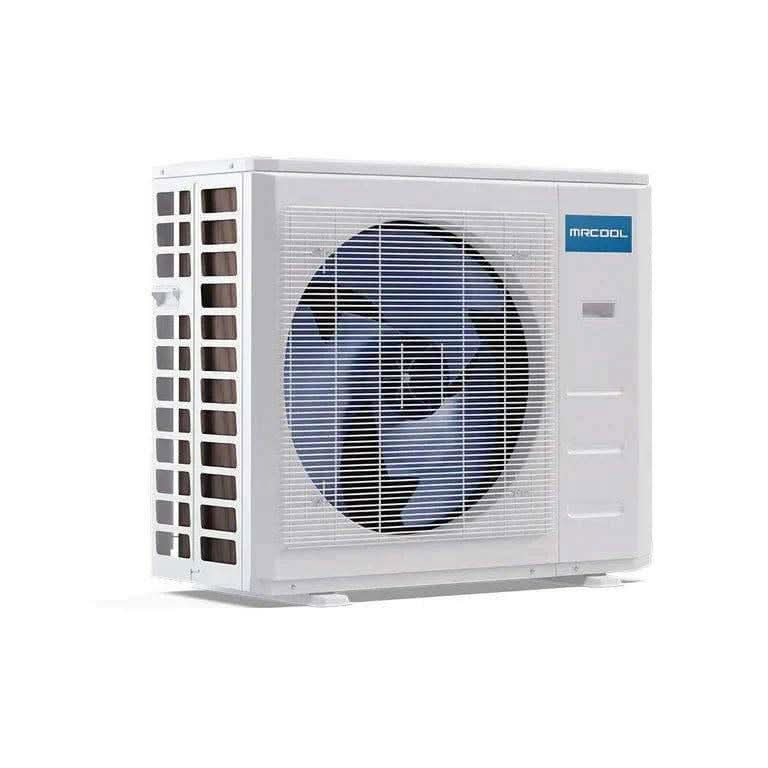

1. MRCOOL DIY 48K BTU Multi-Zone Condenser:

   • Delivers up to 20.5 SEER efficiency, significantly reducing energy costs.
   • Operates in extreme temperatures, heating as low as -5°F and cooling up to 122°F.
   • Comes with a limited lifetime compressor warranty when registered with the MRCOOL Care Program.

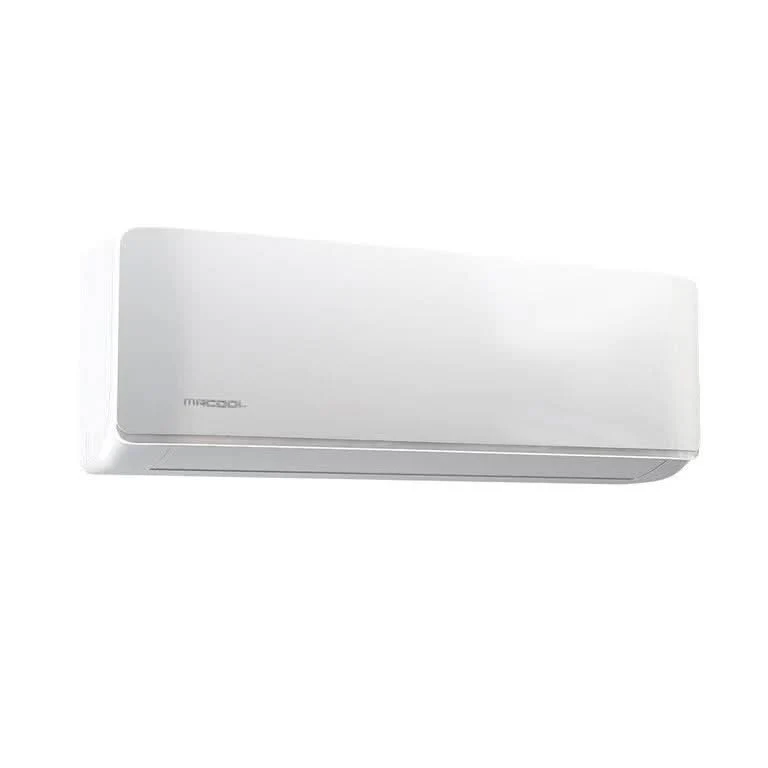

2. Wall-Mounted Air Handlers:

   • 18K BTU Air Handler:
     • Covers up to 750 sq. ft., ideal for medium-sized rooms or offices.
   • 24K BTU Air Handler:
     • Covers up to 1,000 sq. ft., perfect for larger living spaces or open areas.
   • Both units include versatile operating modes and sleek, compact designs for easy installation.

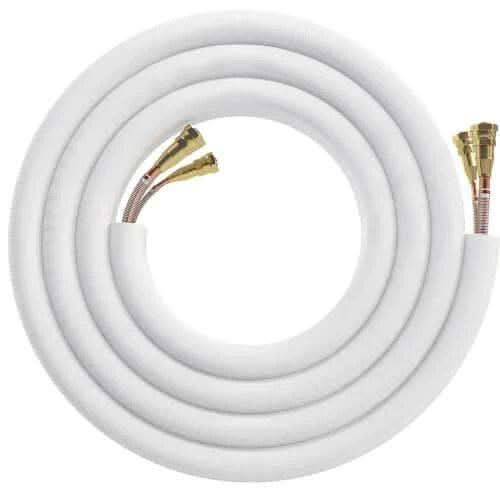

3. 16 ft. Pre-Charged Line Sets:

   • Pre-filled with R-410A refrigerant for hassle-free installation.
   • Quick Connect® fittings ensure a secure and efficient setup.

4. Complete Installation Kit:

   • Includes mounting plates, screws, remote controls, insulation materials, and sound-deadening pads for a seamless DIY experience.

---

Key Features

1. Energy Efficiency

• 20.5 SEER Efficiency Rating: Ensures energy savings while delivering optimal performance.
• Eco-Friendly Refrigerant: Utilizes R-410A for an environmentally responsible operation.

2. DIY-Friendly Installation

• Pre-Charged Line Sets: No need for professional tools or HVAC technicians.
• Comprehensive Installation Kit: Includes all the tools and instructions needed for a hassle-free setup.

3. Advanced Air Handler Features

• Multiple Operating Modes: Includes Cool, Heat, Auto, Dry (dehumidify), Fan-Only, Quiet, and Sleep modes for personalized comfort.
• Smart Connectivity: Compatible with the Smart HVAC app for remote control via Apple or Android devices.
• Sleek and Compact Design: Installs easily on most interior walls with the included mounting plate.

4. Reliable Year-Round Performance

• Extreme Temperature Operation: Efficiently heats in sub-zero temperatures as low as -5°F and cools in high temperatures up to 122°F.
• Independent Zone Control: Tailor the temperature and settings for each space with individual air handlers.

5. Quiet and Durable

• Whisper-Quiet Operation: Maintains a peaceful environment, even in bedrooms or offices.
• Gold Fin Technology: Protects against corrosion, ensuring long-lasting performance.

---

Specifications

Condenser

• Cooling Capacity: 48,000 BTU
• Heating Capacity: 48,000 BTU
• Efficiency Ratings: SEER: 20.5, EER: 11
• Operating Temperatures: Heating: -5°F to 75.2°F | Cooling: 5°F to 122°F
• Voltage Requirements: 208V-230V/60HZ/40-60A
• Dimensions: 37.24"W x 16.34"D x 52.48"H
• Warranty: 7-year condenser replacement, 5-year parts

Wall-Mounted Air Handlers

• 18K BTU Air Handler:
  • Coverage Area: Up to 750 sq. ft.
  • Cooling/Heating Capacity: 18,000 BTU
  • Dimensions: 42.52"W x 8.90"D x 13.19"H
  • Modes: Auto, Cool, Heat, Dry, Fan-Only, Quiet, Sleep
  • Voltage Requirements: 208V-230V/60HZ/18-30A
  • Warranty: 5-year parts
• 24K BTU Air Handler:
  • Coverage Area: Up to 1,000 sq. ft.
  • Cooling Capacity: 23,000 BTU, Heating Capacity: 25,000 BTU
  • Dimensions: 42.52"W x 8.90"D x 13.19"H
  • Modes: Auto, Cool, Heat, Dry, Fan-Only, Quiet, Sleep
  • Voltage Requirements: 208V-230V/60HZ/22-35A
  • Warranty: 5-year parts

Line Sets

• Length: 16 feet (per zone)
• Liquid Line Size: 1/4" (18K Air Handler), 3/8" (24K Air Handler)
• Suction Line Size: 1/2" (18K Air Handler), 5/8" (24K Air Handler)
• Pre-Charged: Includes R-410A refrigerant

---

Benefits of the MRCOOL DIY 2-Zone Mini Split System

1. Customizable Comfort:

   • Independently control two zones with individual air handlers and remotes.
   • Ideal for medium to large spaces like bedrooms, offices, or living areas.

2. Smart Control:

   • Use the Smart HVAC app to monitor and adjust settings remotely.
   • Compatible with Amazon Alexa and Google Home for voice-activated control.

3. Energy Savings:

   • High SEER rating ensures reduced energy bills without sacrificing comfort.
   • Timer and Sleep modes enhance energy efficiency during non-peak hours.

4. Quiet and Reliable Operation:

   • Designed for minimal noise, ensuring a peaceful environment in any room.
   • Built to last with corrosion-resistant components and robust warranties.

5. DIY Convenience:

   • Save money on professional installation with an easy-to-follow DIY setup.
   • Includes all necessary tools and accessories for a seamless experience.

---

Perfect Applications

• Homes: Heat and cool two separate spaces, such as bedrooms, offices, or large living areas.
• Offices: Maintain comfortable temperatures in multi-zone workspaces.
• Renovations: Flexible and efficient for retrofitting older buildings or integrating HVAC into new construction projects.

---

Order Now

The MRCOOL DIY 4th Gen 42,000 BTU 2-Zone Mini Split System combines powerful performance, energy efficiency, and the ease of DIY installation. Whether upgrading your home or outfitting a commercial space, this system delivers reliable year-round comfort.

Order today from MRCOOL DIY Direct and enjoy hassle-free heating and cooling for your spaces!
