MRCOOL DIY Mini Split - 45,000 BTU 5 Zone Ductless Air Conditioner and Heat Pump, DIY-B-548HP0909090909

• MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
• MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x5)

This package does not include linesets, don't forgot to scroll up and add them!

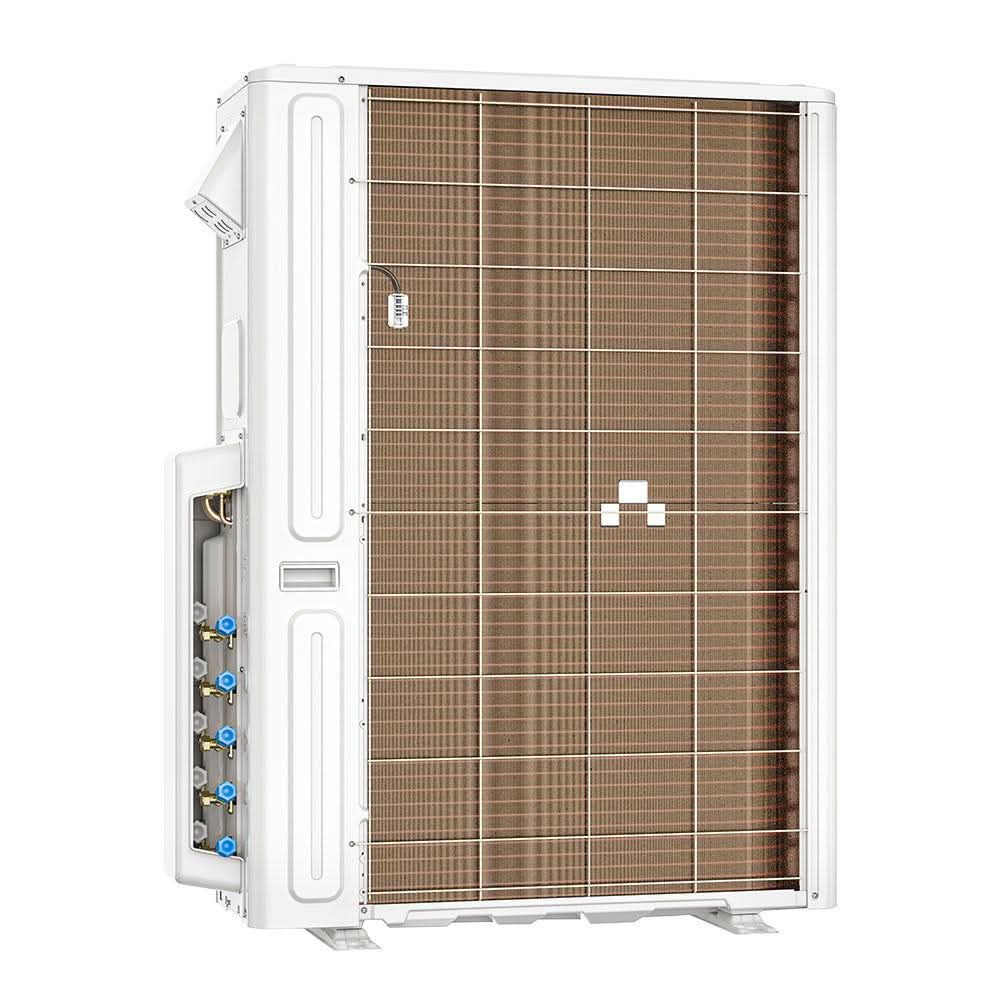

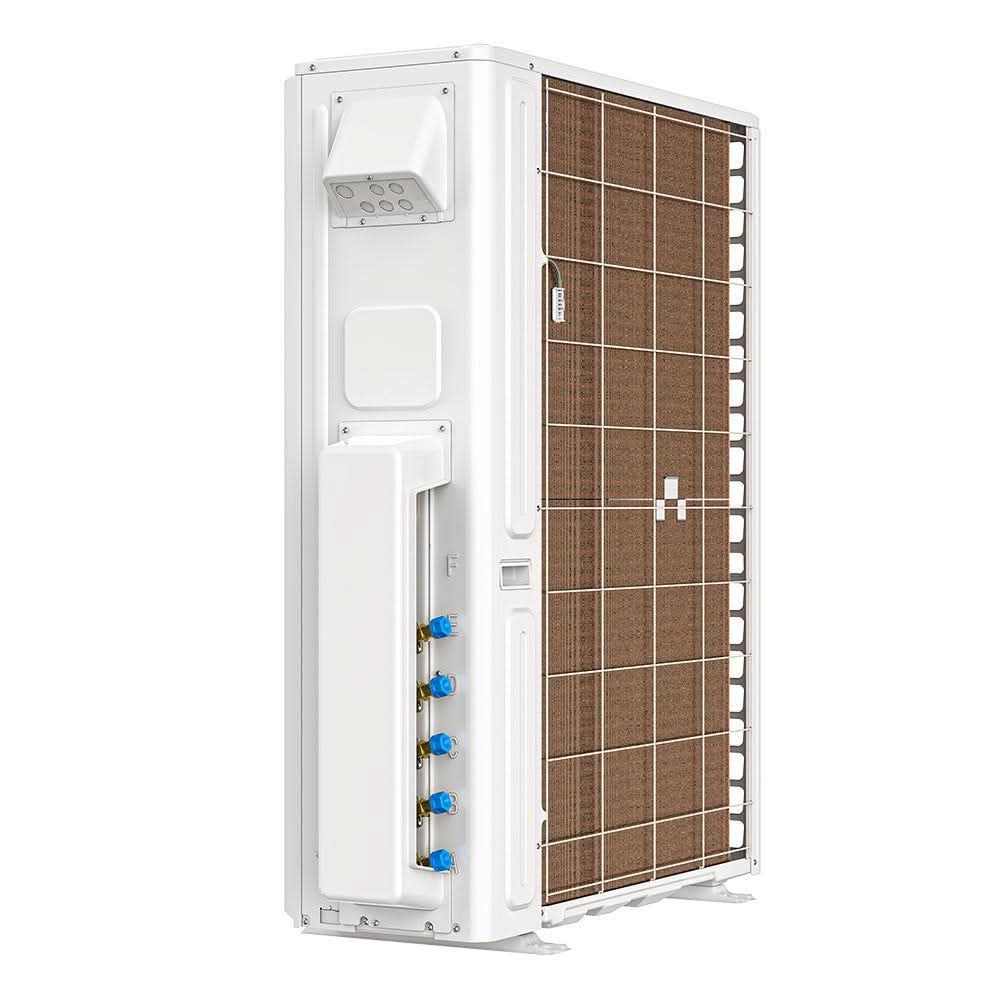

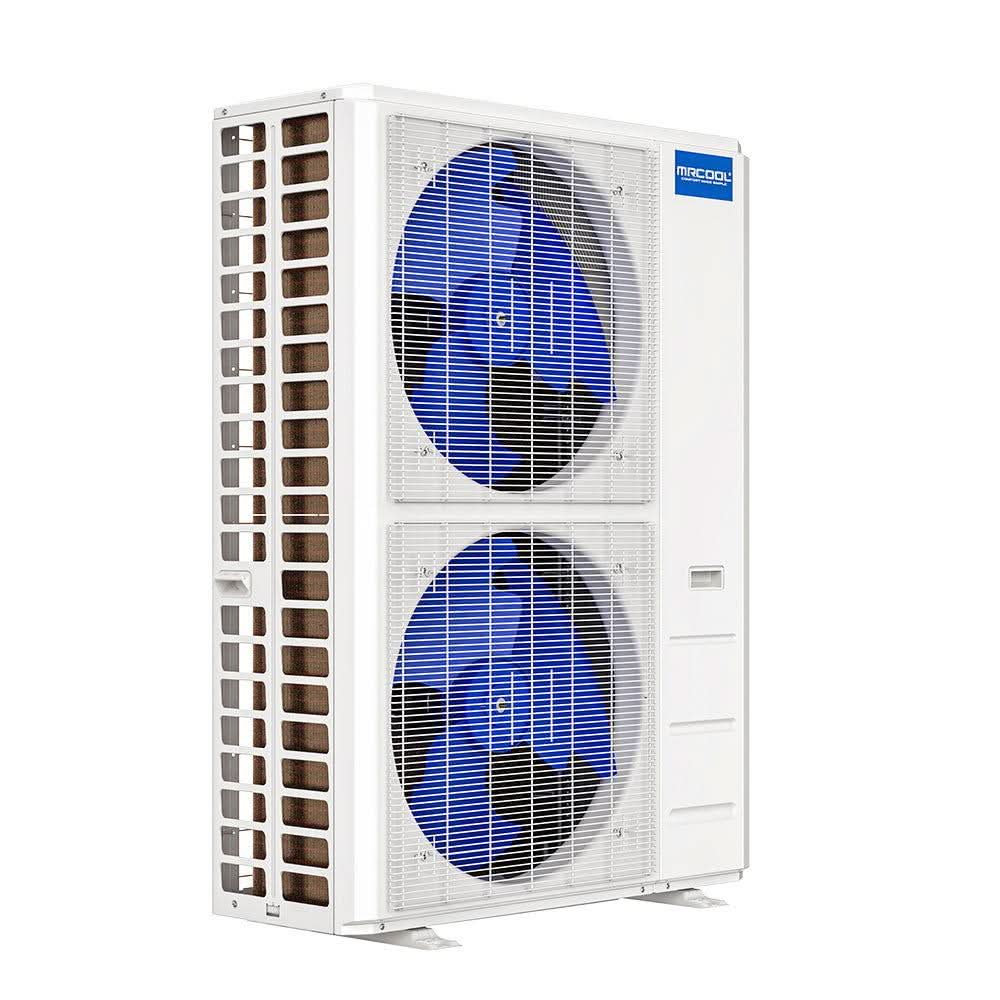

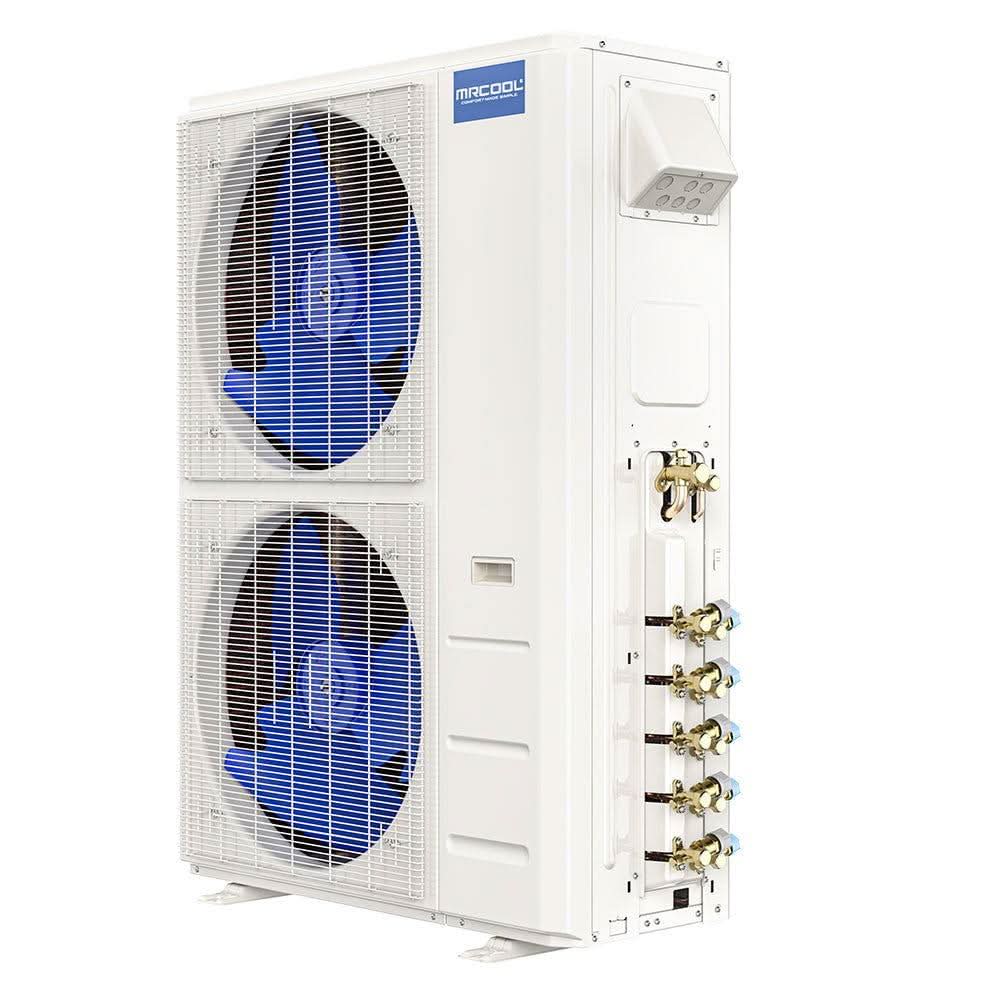

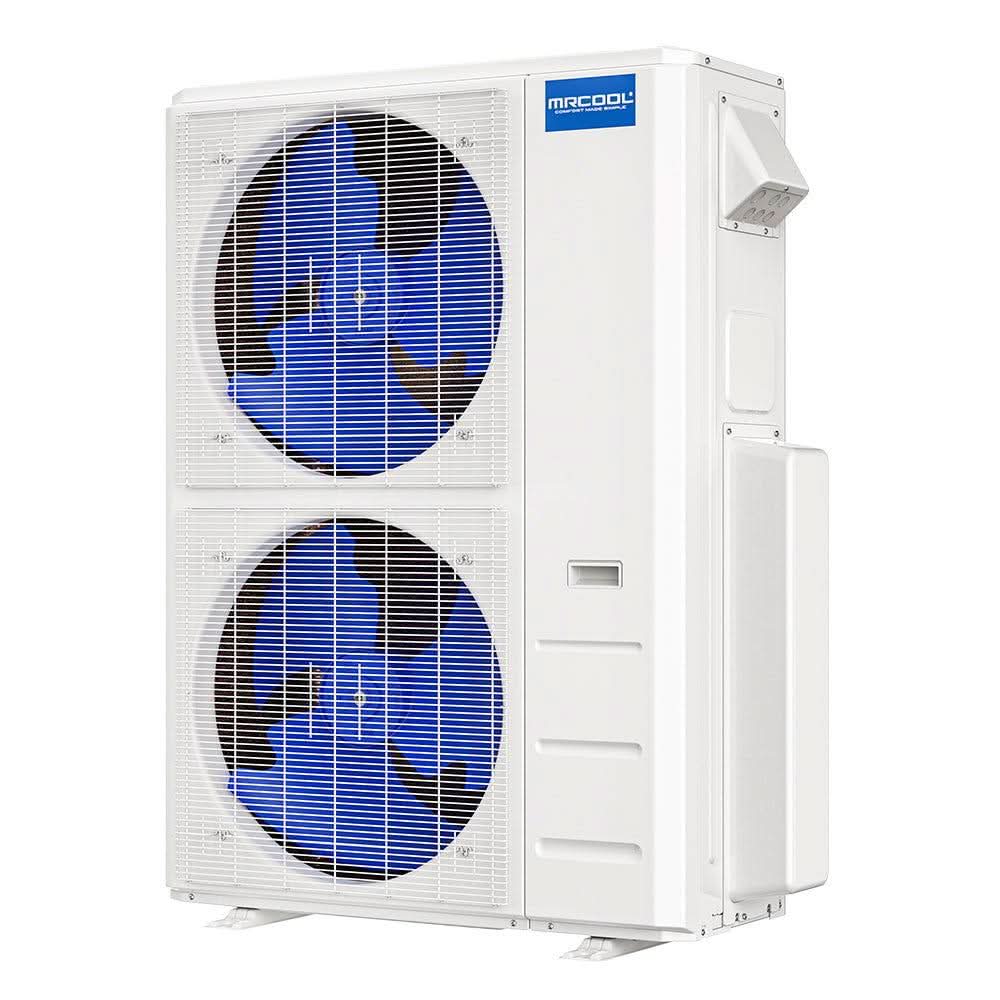

Condenser

• Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive

• 20.5 SEER efficiency rating.
• Works In All Environments. The

• capability to continue to deliver heating performance when temperatures reach

• 5°F
• Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

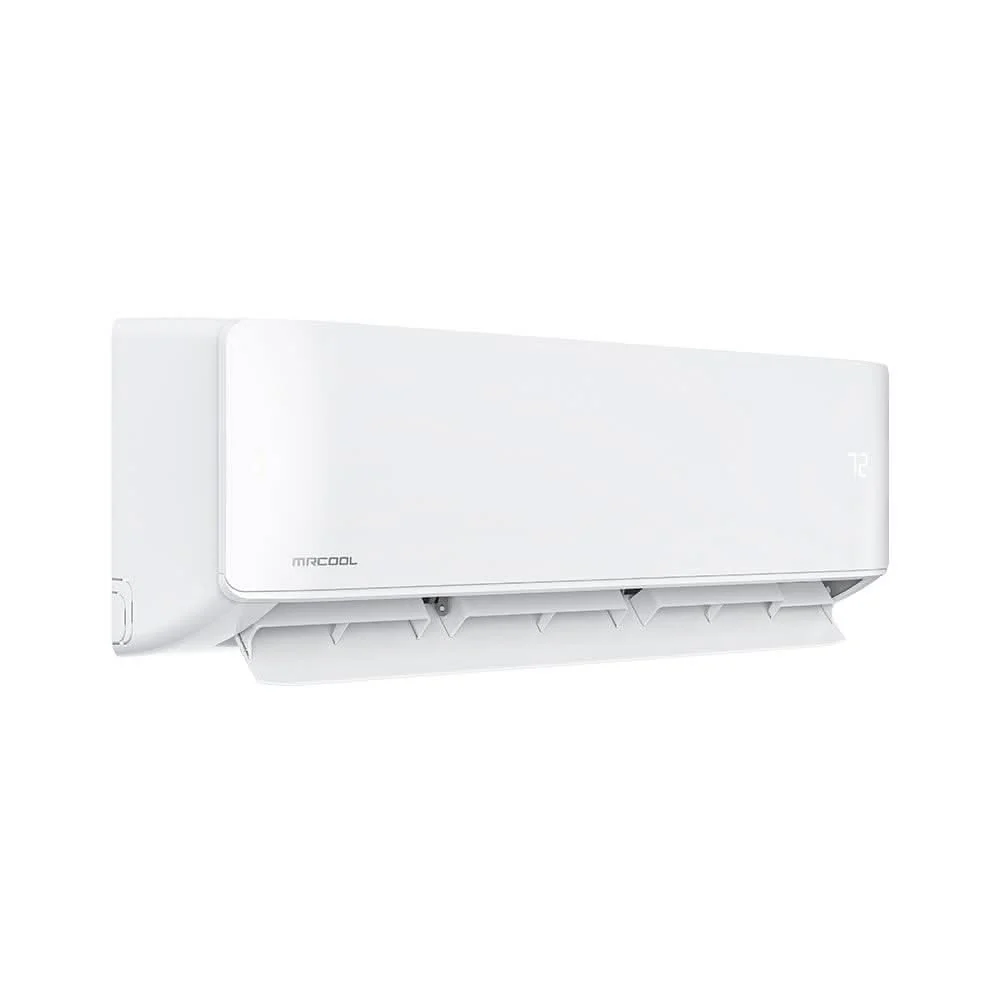

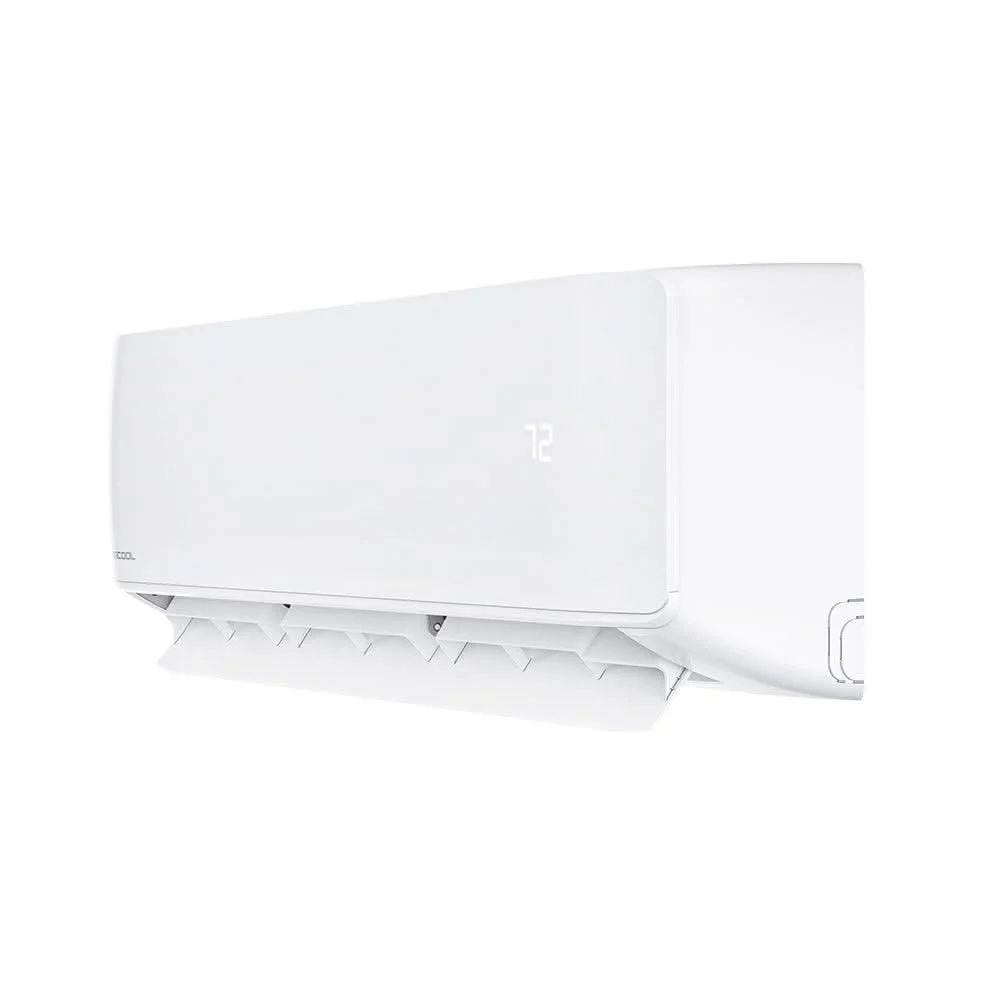

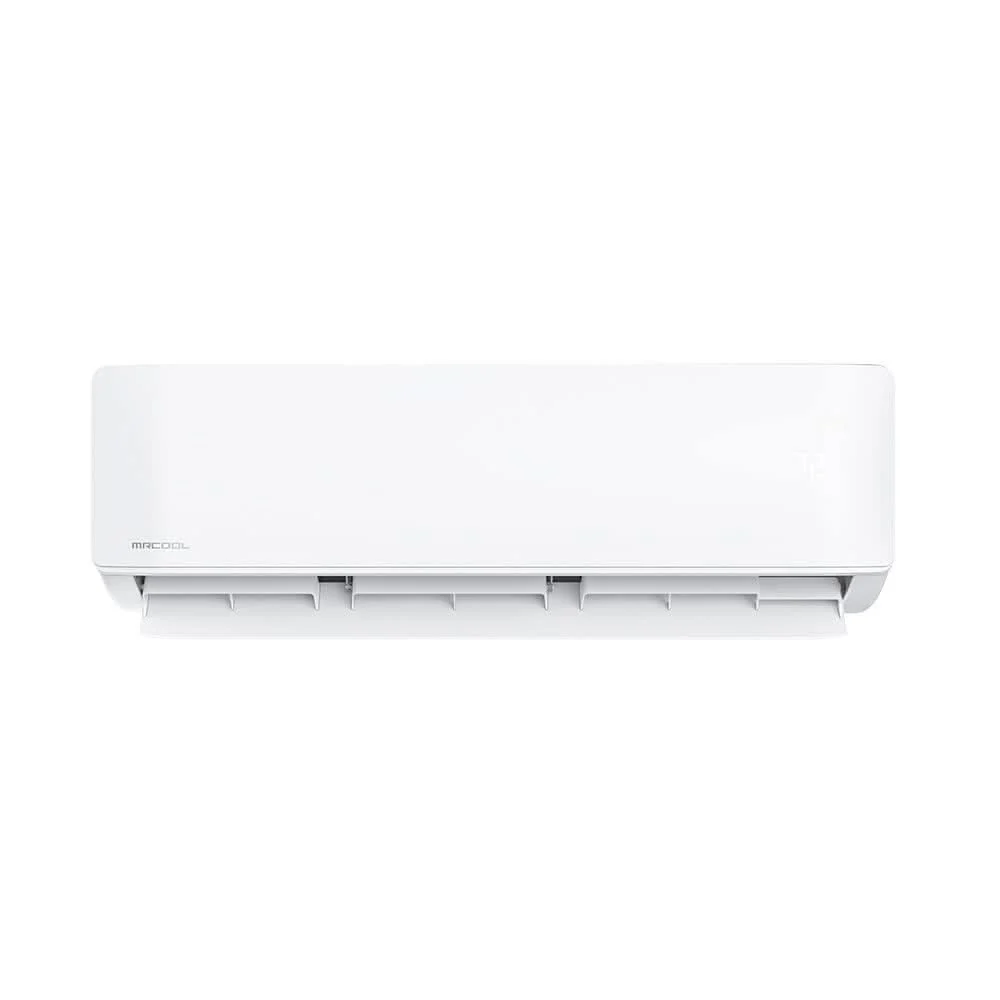

Air Handler, 9K BTU, Quantity 5

• Large Coverage Area. Handler covers an area up to 375 sq. ft.
• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

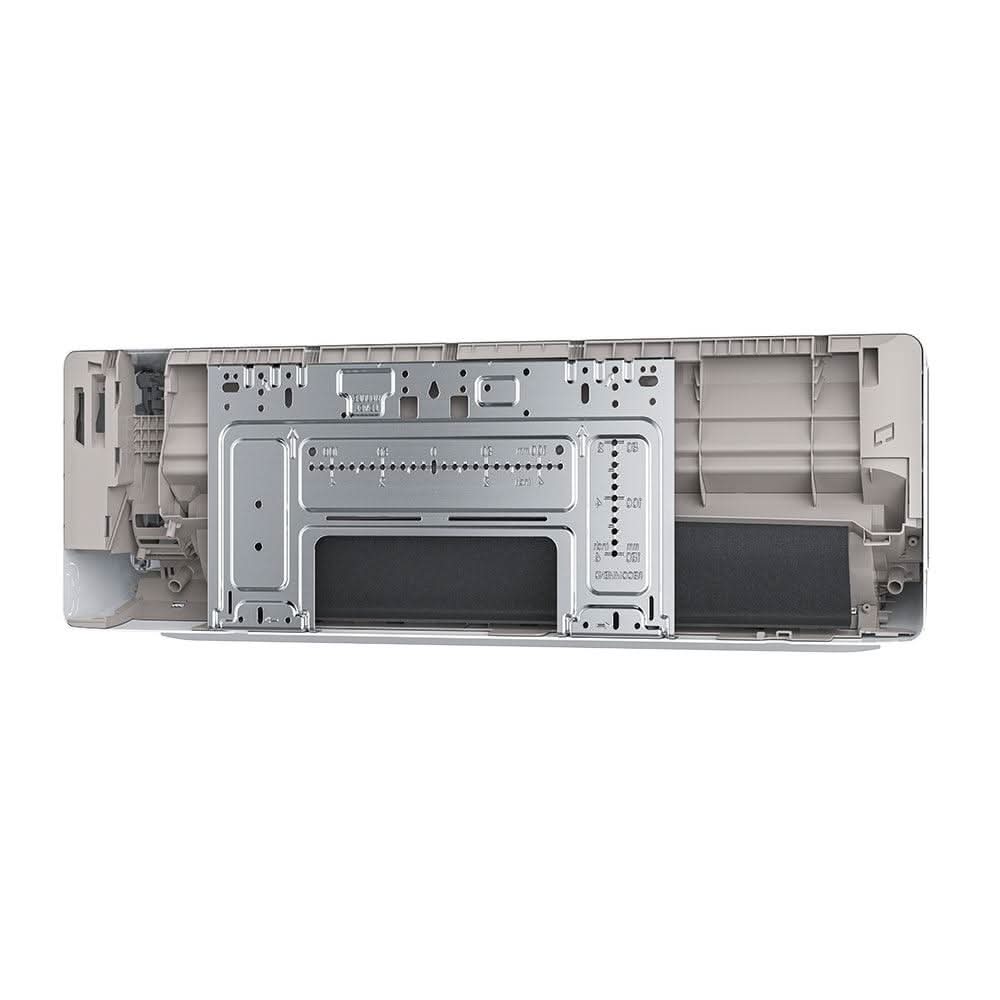

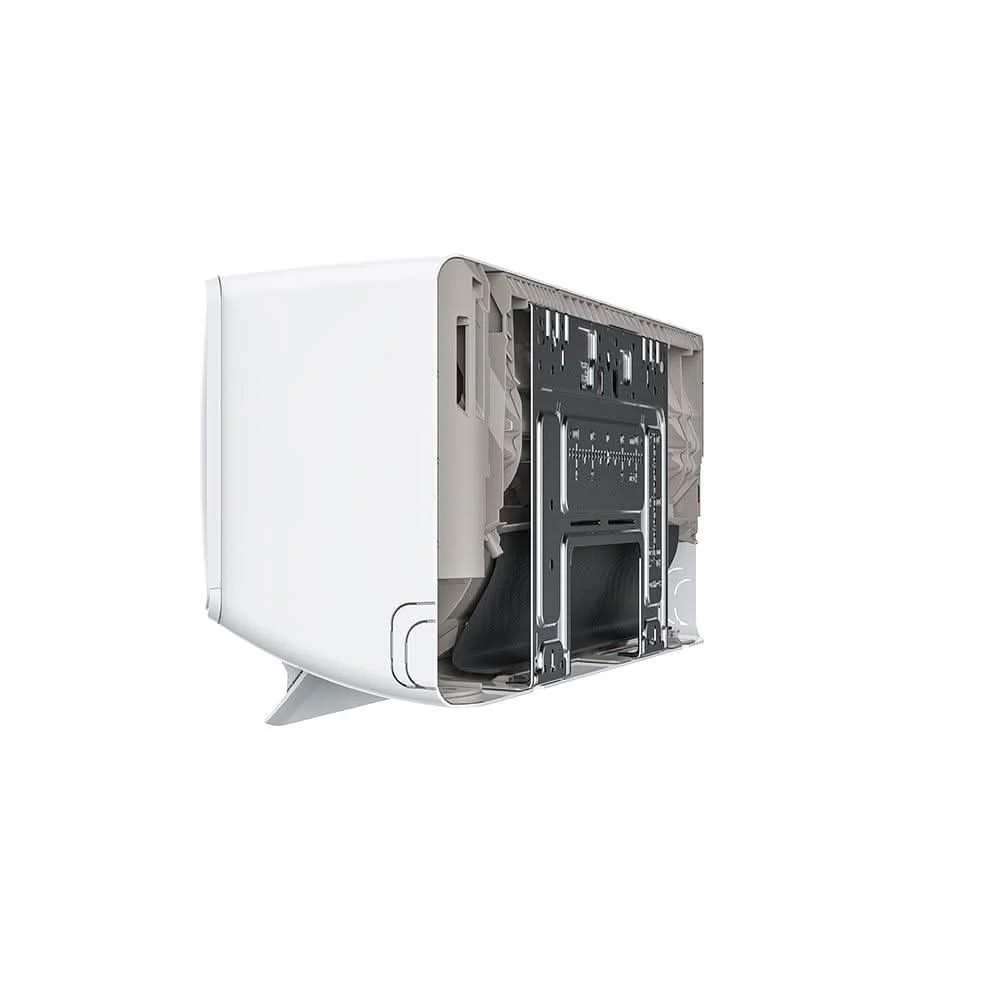

• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

PRODUCT SPECIFICATIONS:
Condenser

Product Dimensions	37.48'W x 16.34'D x 52.48'H
Cooling Capacity	48,000 BTU
Heating Capacity	48,000 BTU
Zone Capacity	5
Cool Mode - Outdoor Operating Temperature Range	5F ~ 122F
Heat Mode - Outdoor Operating Temperature Range	5F ~ 75.2F
SEER	20.5
EER	11
Voltage	Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty	7 Years Replacement on Compressor, 5 Years Parts

Air Handler 9K BTU

Product Dimensions	31.57'W x 7.44'D x 11.69'H
Mount Type	Wall
Cooling Capacity	9,000 BTU
Heating Capacity	9,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep
